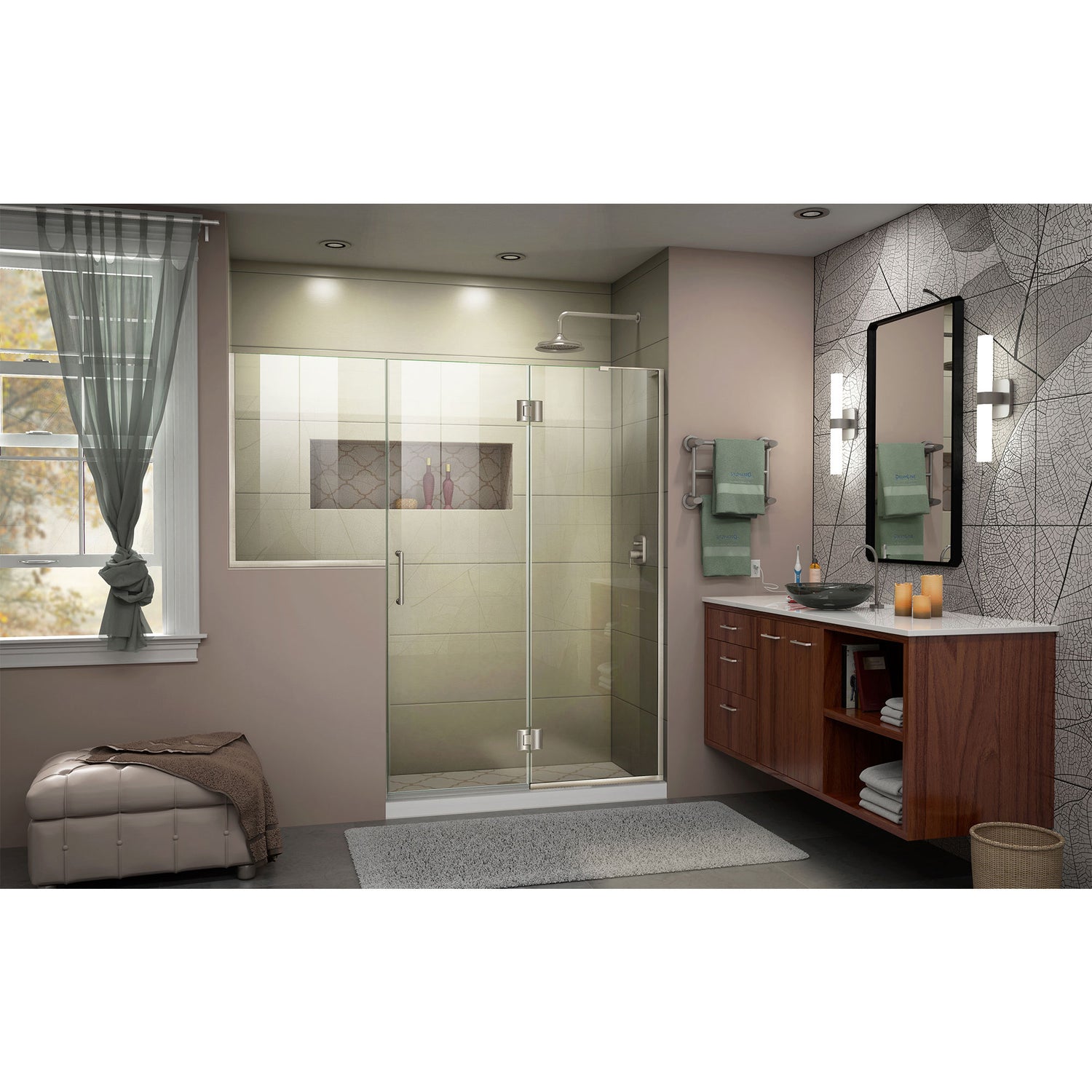

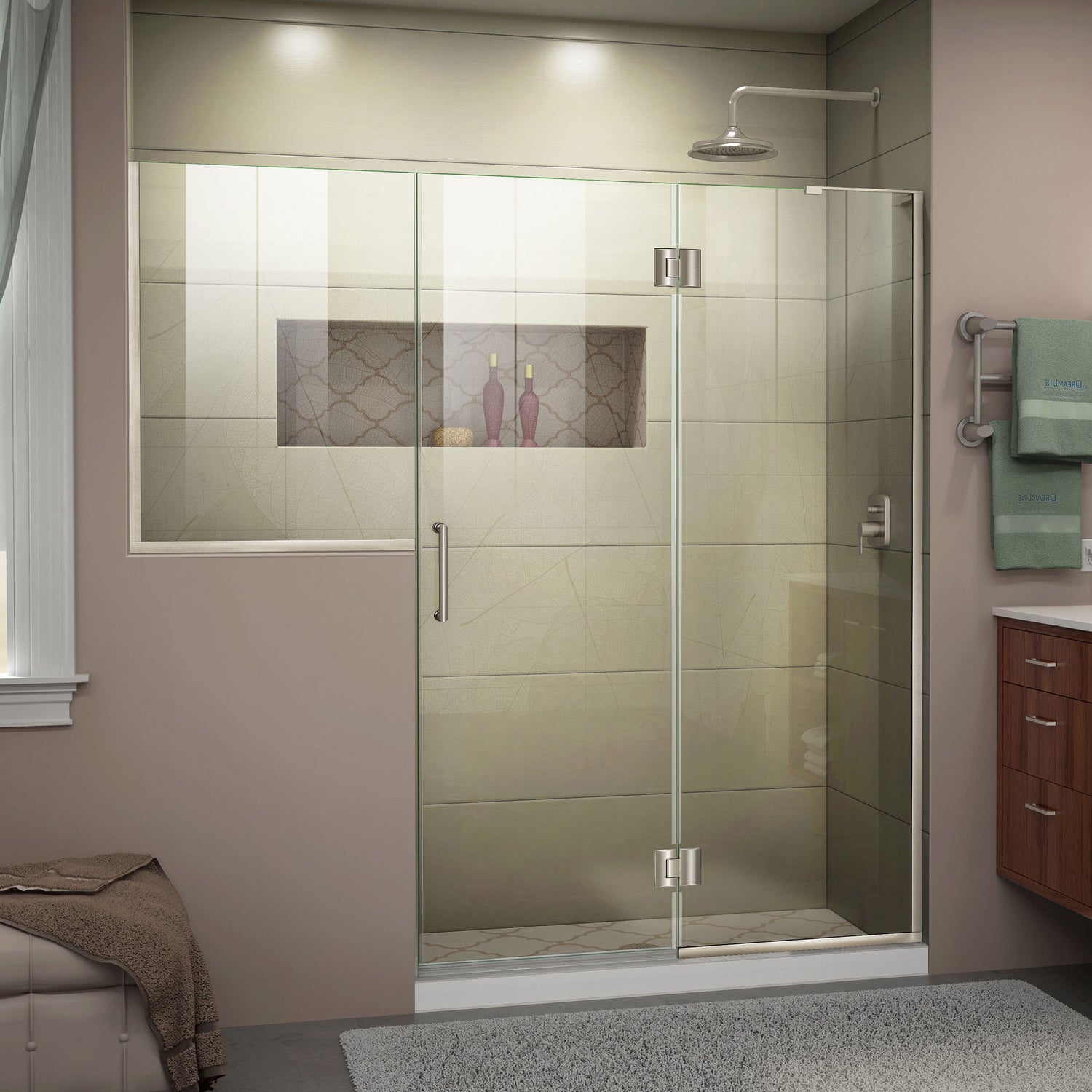

DreamLine Unidoor-X 71-71 1/2 in. W x 72 in. H Frameless Hinged Shower Door in Brushed Nickel

Tempered Glass

Unidoor-X

Frameless

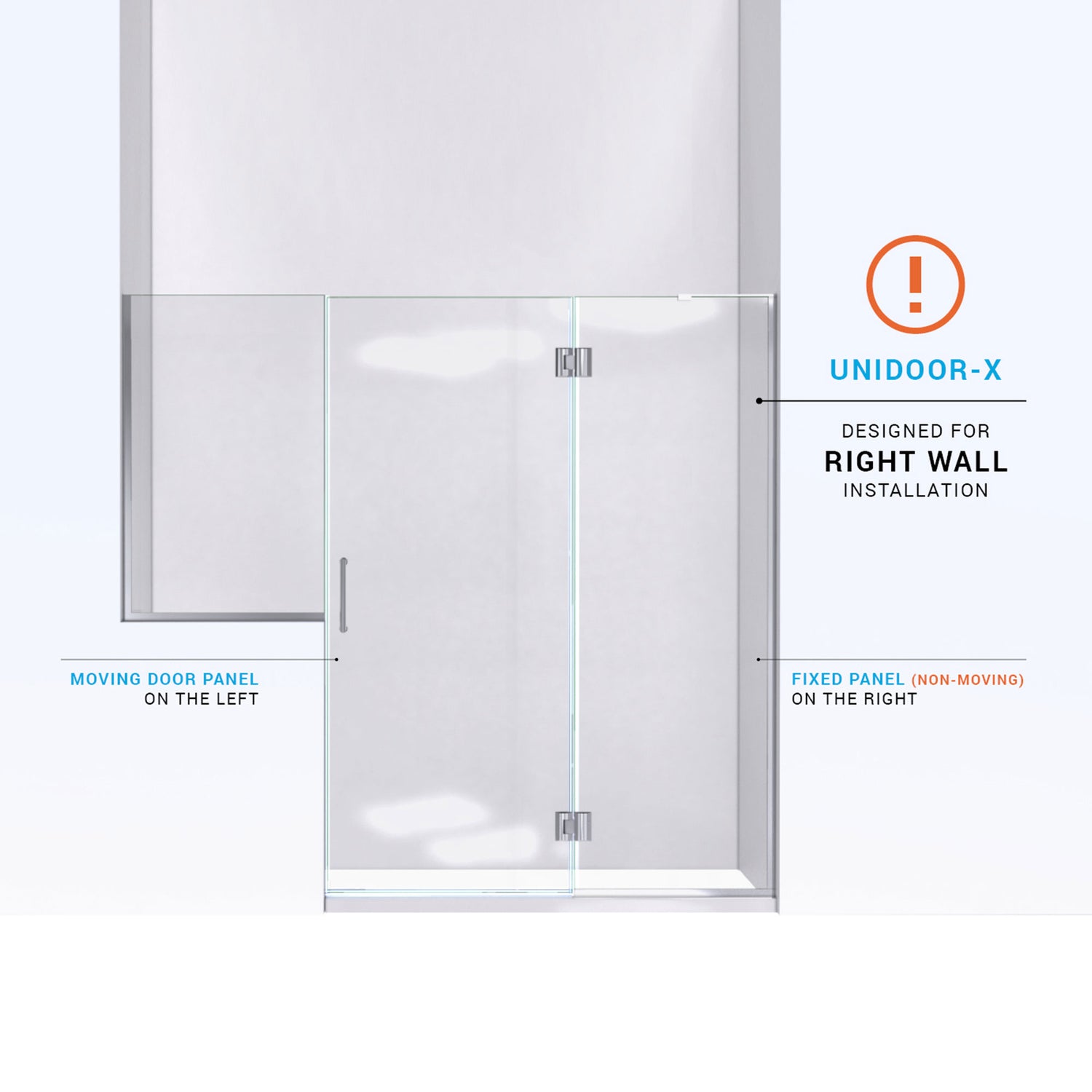

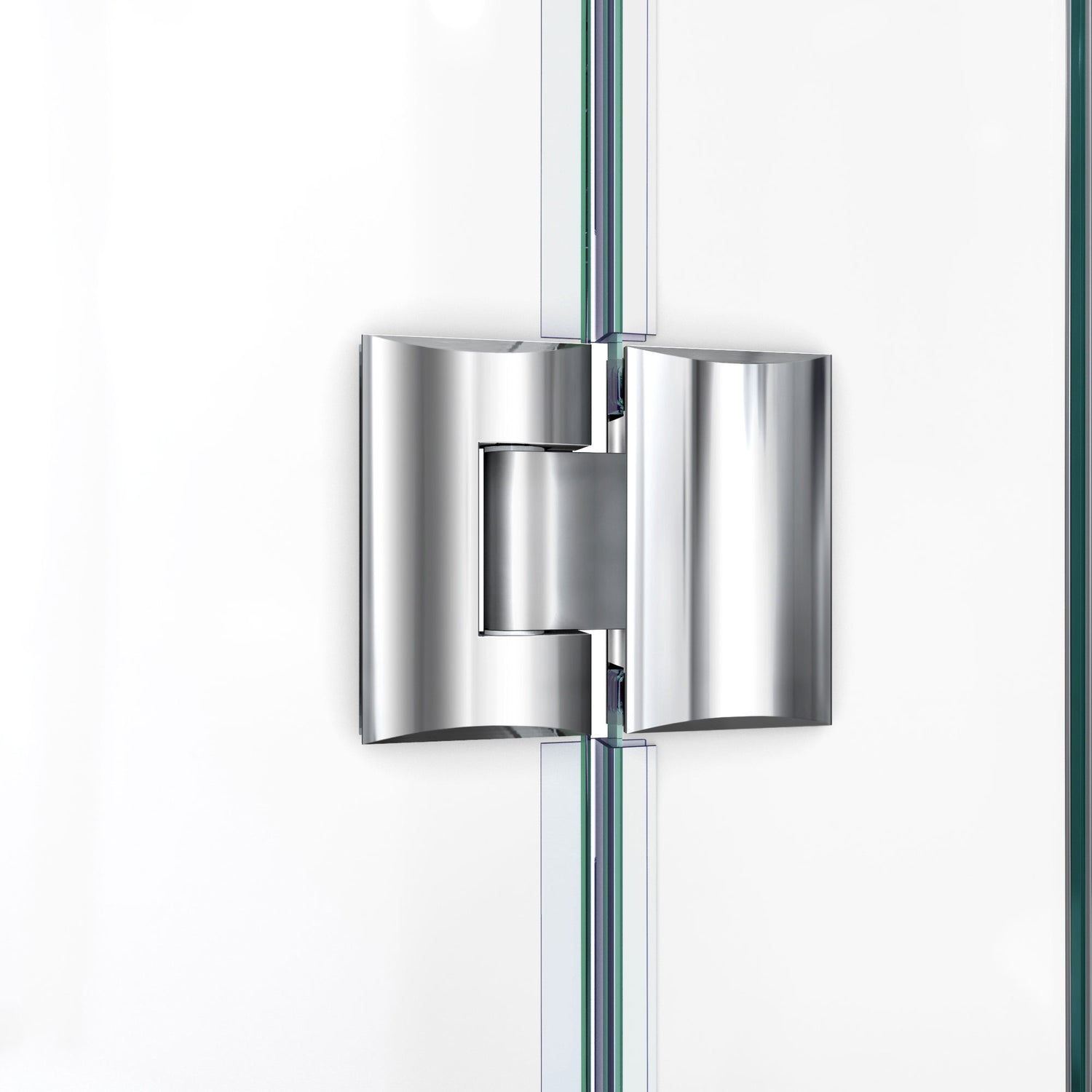

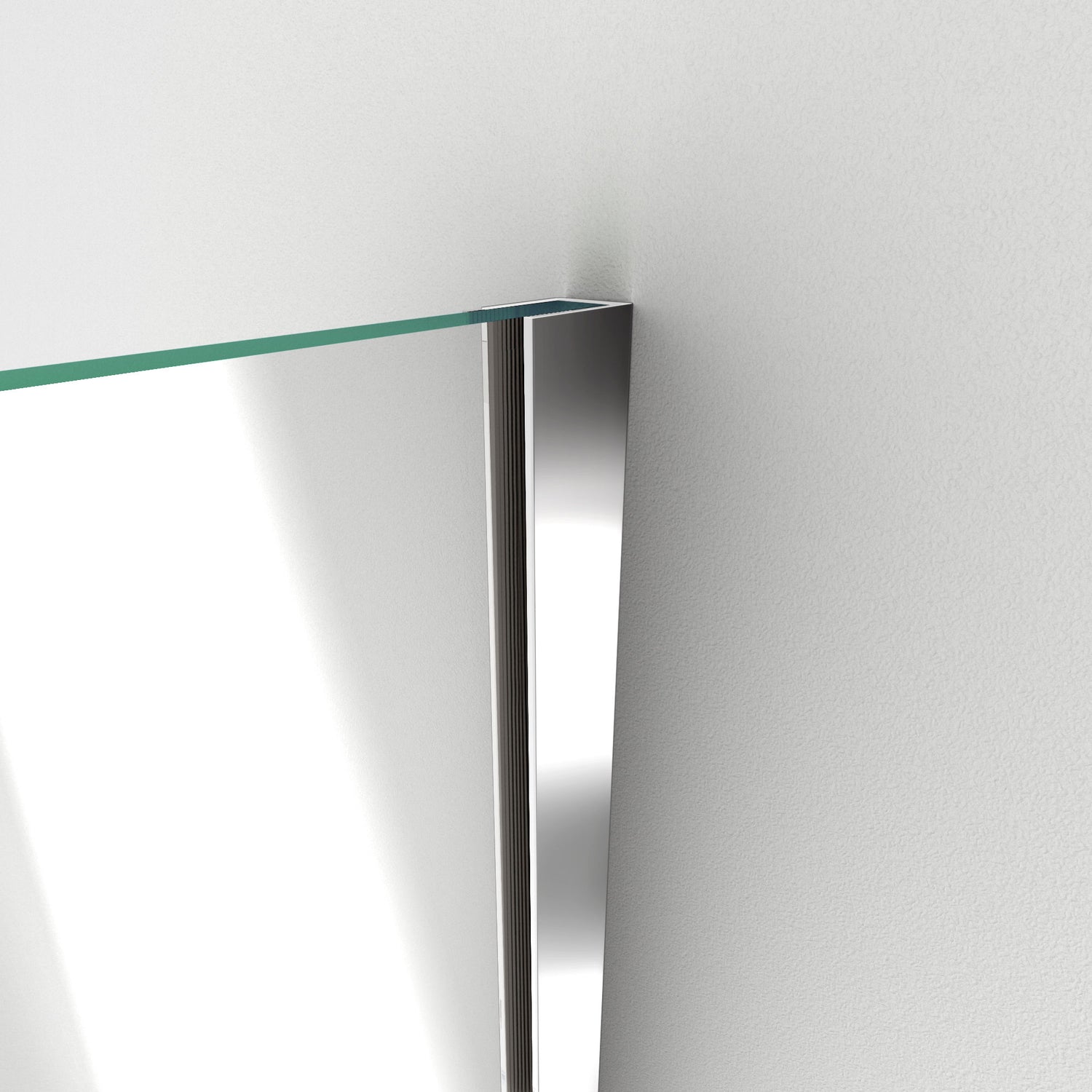

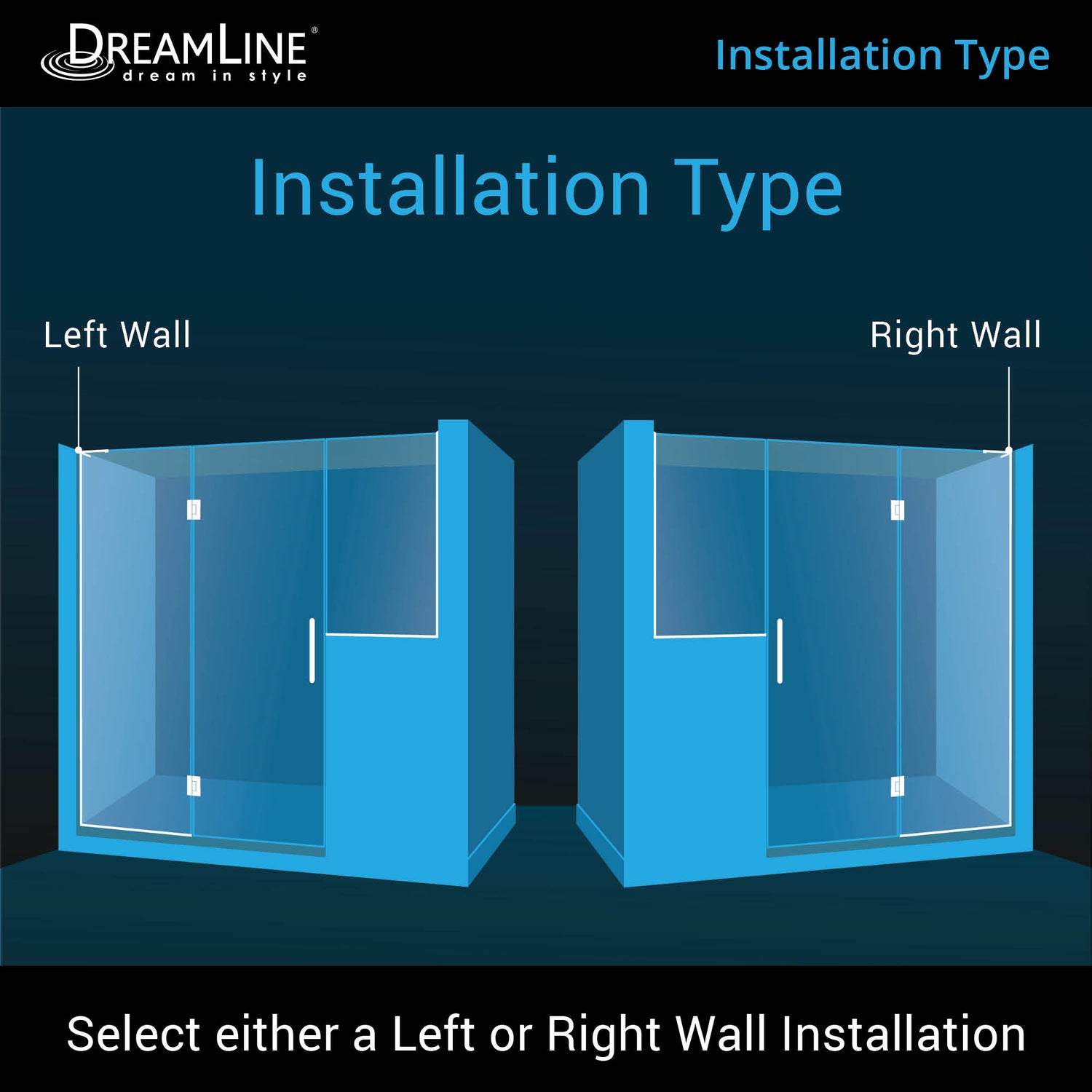

Model Size: 71-71 1/2 in. W x 72 in. H, Walk-in opening: 22 in., Configuration: 24 in. Hinged panel with attached Shower Door and 24 in. W x 36 in. H Inline Buttress panel, Hinged and Inline panels are attached to the wall by 1 in. anodized aluminum U-channel, 1/2 in. width or out-of-plumb adjustment available within U-channel on Inline panel side, 1/4 in. out-of-plumb adjustment available within U-channel on Hinged panel side, This model is not reversible. Right wall installation (Hinged Panel on right), Premium 3/8 in. (10 mm) thick certified clear tempered glass for a luxurious look, DreamLine exclusive ClearMax water and stain resistant glass coating, Frameless glass design to give an open and airy feel to your shower space, Solid brass glass-to-glass self-closing hinges, Proprietary L-Bar ensures stability and provides an unobstructed look, Hardware Finish: Brushed Nickel, IMPORTANT! All measurements should be taken only AFTER walls are finished (tile. Wall Kits. etc.), Professional installation recommended, Limited Lifetime Manufacturer Warranty. (Oil Rubbed Bronze and Satin Black finishes limited to 1 (one) year warranty), Drilling into the floor threshold and top of buttress wall is required for installation of this product, Model Size: 71-71 1/2 in. W x 72 in. H, Walk-in opening: 22 in., Configuration: 24 in. Hinged panel with attached Shower Door and 24 in. W x 36 in. H Inline Buttress panel, Hinged and Inline panels are attached to the wall by 1 in. anodized aluminum U-channel, U-channels allow for adjustment of up to 1/2 in. for width or out-of-plumb on Inline panel side and 1/4 in. for out-of-plumb on Hinged panel side, Premium 3/8 in. (10 mm) thick certified clear tempered glass, DreamLine exclusive ClearMax water and stain resistant glass coating, Proprietary L-Bar ensures stability and provides an unobstructed look, Solid brass glass-to-glass self-closing hinges, Hardware Finish: Brushed Nickel, This model is not reversible. Right wall installation (Hinged Panel on right), IMPORTANT! Measure your space AFTER walls are finished (tile. etc.), Professional installation recommended, Drilling into threshold and wall required, Limited Lifetime Manufacturer Warranty. (Oil Rubbed Bronze and Satin Black finishes limited to 1 (one) year warranty), The DreamLine Unidoor-X is a frameless shower door. tub door or enclosure that features a luxurious modern design. complementing the architectural details. tile patterns and the composition of your bath space. Unidoor-X showcases sleek. clean lines to enhance any shower space. creating a stunning appearance. DreamLine exclusive ClearMax water repellant and stain resistant glass coating adds superior protection from stains and is nearly maintenance-free. Unidoor-X is part of DreamLine Unidoor collection. the most versatile line of shower doors and enclosures on the market. Limited Lifetime Manufacturer Warranty. (Oil Rubbed Bronze and Satin Black finishes limited to 1 (one) year warranty). Please note. drilling into the floor threshold and top of buttress wall is required for installation of this product. Professional installation recommended., Model Size: 71-71 1/2 in. W x 72 in. H, Walk-in opening: 22 in., 24 in. Hinged panel with Shower Door and 24 in. W x 36 in. H Inline Buttress panel, Hinged and Inline panels attached to the wall by 1 in. anodized aluminum U-channel, Proprietary L-Bar for stability and an unobstructed look, U-channels allow for adjustment of up to 1/2 in. for width or out-of-plumb on Inline panel side and 1/4 in. for out-of-plumb on Hinged panel side, Premium 3/8 in. (10 mm) thick certified clear tempered glass, DreamLine exclusive ClearMax water and stain resistant glass coating, Model is not reversible. Right wall installation (Hinged Panel on right), Hardware Finish: Brushed Nickel, Frameless glass design to give an open and airy feel, Exclusive ClearMax water and stain resistant glass coating, Drilling into the threshold is required for proper installation
