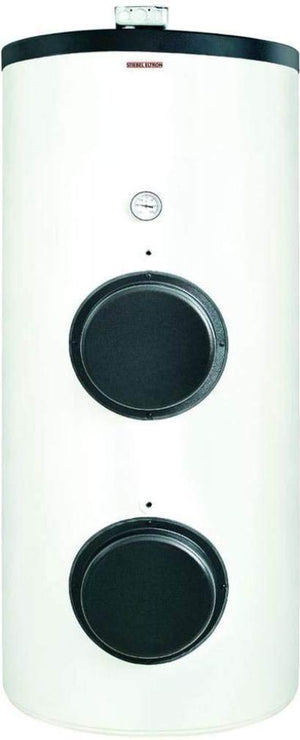

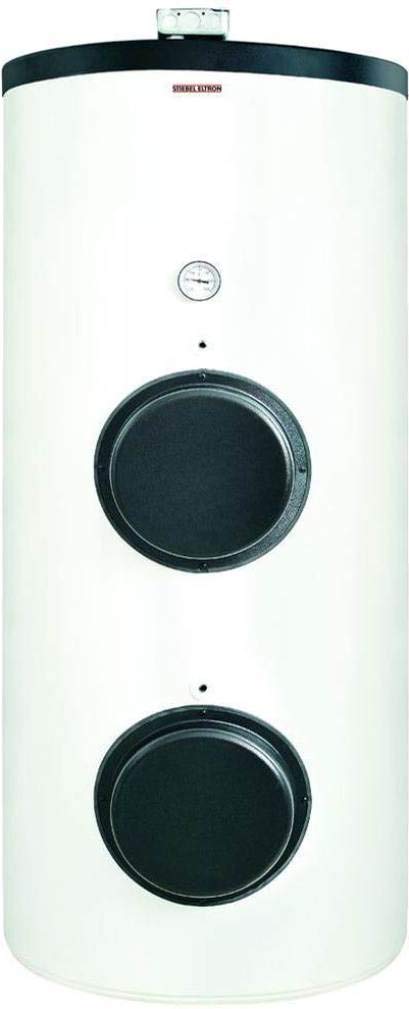

Stiebel Eltron 234110 Model SB 300 E Domestic Single Heat Exchanger Hot Water Tank with Electric Element for Solar, Geothermal or Hydronic Applications; 79.3 Gallon Storage Capacity

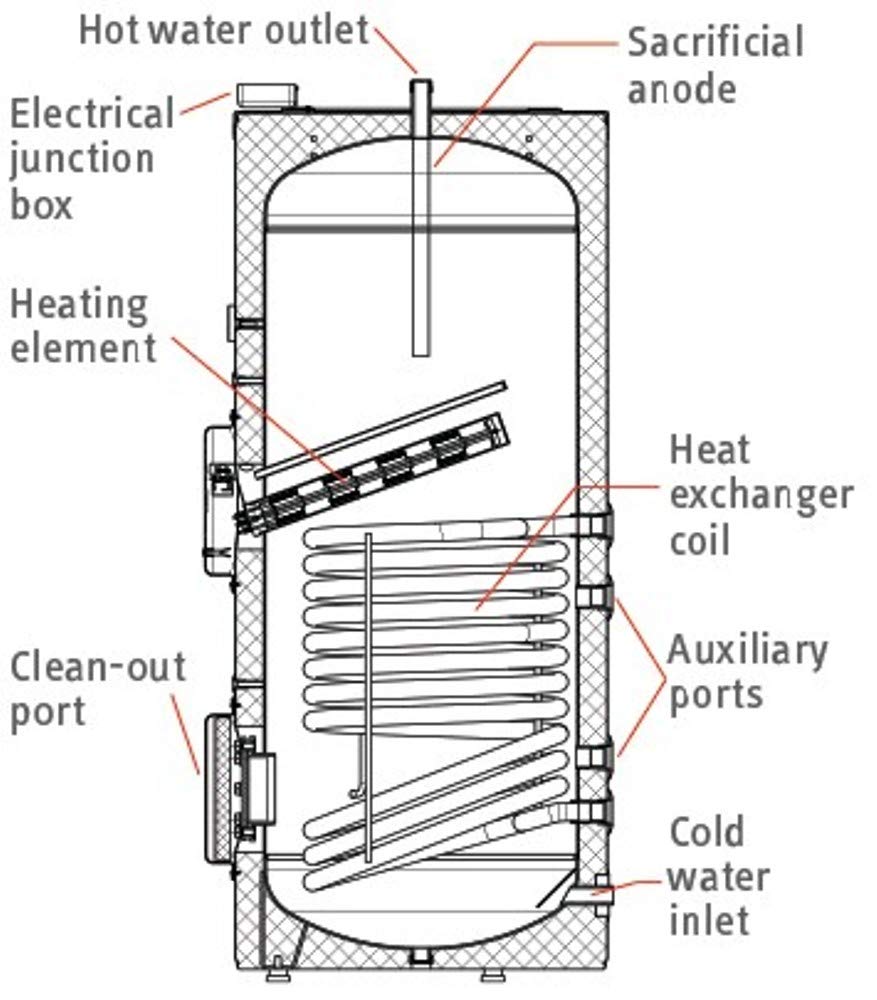

All Stiebel Eltron SBB/SB-E series tanks are made in our factories in Germany and Slovakia. They can be used in residential or commercial installations as indirectly-fired domestic hot water storage tanks in conjunction with any type of boiler, geothermal, or solar hot water application. The vessels and heat exchangers in SBB/SB-E tanks are made from heavy gauge steel. All surfaces in contact with domestic hot water receive a thick porcelain enamel coating after shot-peening to clean the steel surface. All SBB/SB-E tanks come with heavy-duty sacrificial anodes and visible anode wear indicators.
Key Features- Heavy gauge steel with porcelain enamel coating
- Superb quality results in long service life
- Fitted with one or two large heat exchangers
- Sacrificial anode rod
- Up to 3" R-21 urethane foam insulation for low standby heat loss
- Large clean out port for ease of maintenance
- Storage capacity: 79.3 gal
- Heat exchanger volume: 2.4 gal
- Surface area of heat exchanger: 16.1ft2
- Working pressure: 145 PSI/10 bar
- Heating element voltage: 220-240V
- Heating capacity: 10,239 BTU/hr/3.0 kW
- Frequency: 60Hz
- Rated current: 12.5A
- Required circuit breaker: 20A
- Heating element type: Dome element
- Heating element material: Ceramic
- Set range of thermostat: 86°F-167°F
- Cold/hot water connection: 1" male NPT
- Heat exchanger & auxiliary connections: 1" female NPT
- Standby losses in 24 hours: 2.8 kW/9553 BTU
- Height: 61-1/8"
- Diameter 25-9/16"
- Insulation thickness 2"
- Diameter without insulation 21-5/8"
