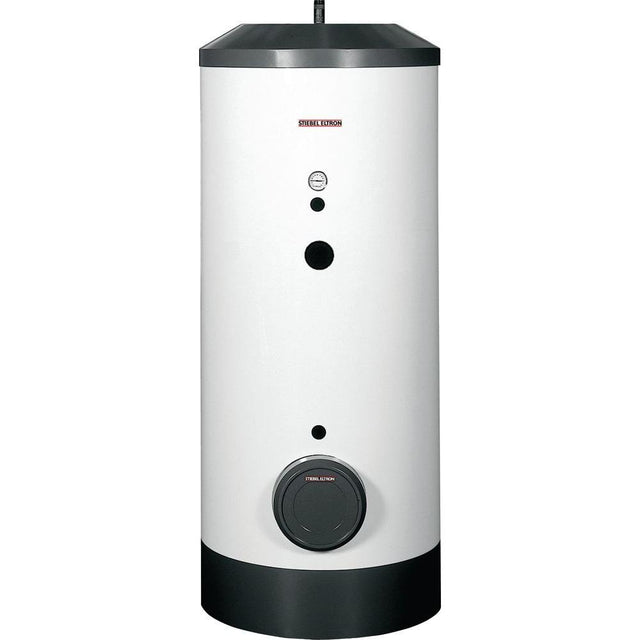

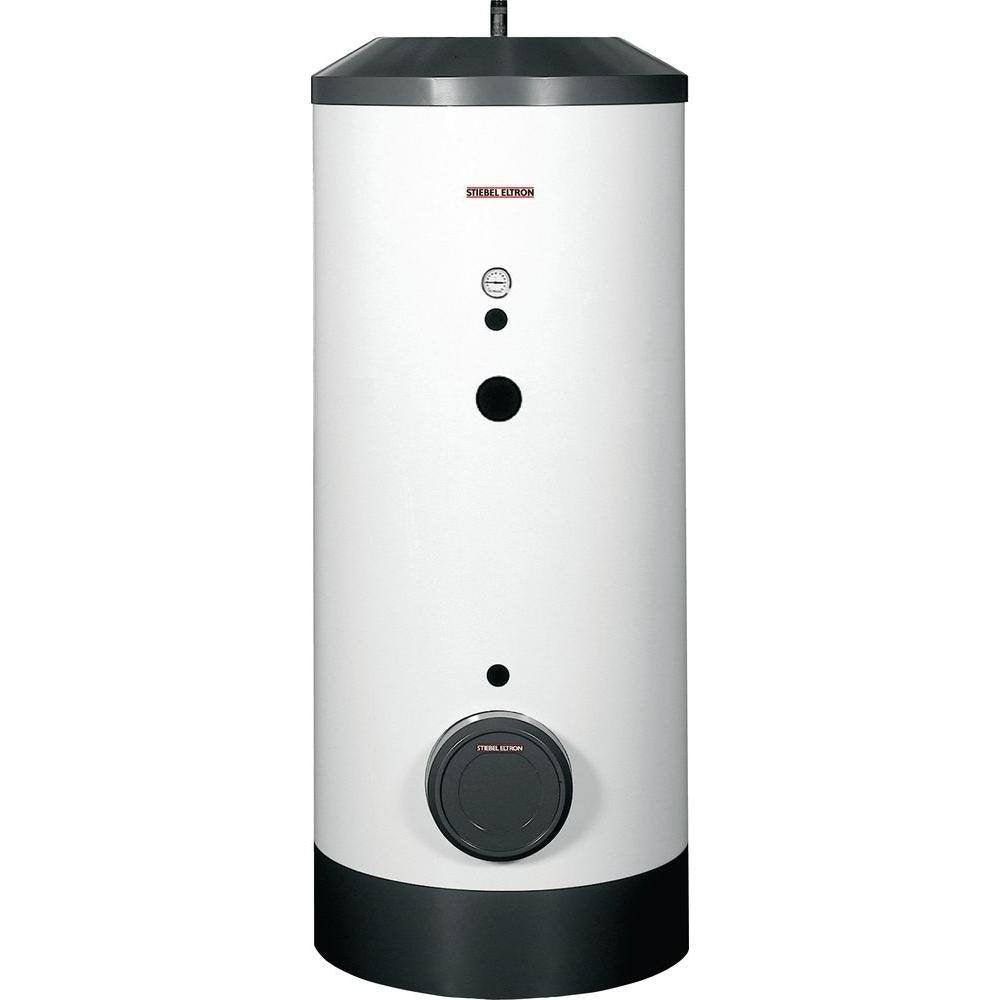

SBB 400 Plus Dual Heat Exchanger Indirect Storage Tank 109 gal. 187874

Stiebel Eltron  |  SKU: 187874  |  Barcode: 040232177033
Regular price $2,99900
Stiebel Eltron 187874 Model SBB 400 Plus Domestic Dual Heat Exchanger Hot Water Tank for Solar, Geothermal or Hydronic Applications; 108.6 Gallon Storage Capacity, 150 psi/10 bar Working Pressure

All Stiebel Eltron SBB/SB-E series tanks are made in our factories in Germany and Slovakia. They can be used in residential or commercial installations as indirectly-fired domestic hot water storage tanks in conjunction with any type of boiler, geothermal, or solar hot water application. The vessels and heat exchangers in SBB/SB-E tanks are made from heavy gauge steel. All surfaces in contact with domestic hot water receive a thick porcelain enamel coating after shot-peening to clean the steel surface. Up to three inches of urethane foam insulation ensures that hot water stays hot, and standby heat loss is minimized.

Key Features:
- Heavy gauge steel with porcelain enamel coating
- Superb quality results in long service life
- Fitted with one or two large heat exchangers
- Sacrificial anode rod
- Up to 3" R-21 urethane foam insulation for low standby heat loss
- Large clean out port for ease of maintenance

Specifications:
- Storage capacity: 108.6 gal
- Upper heat exchanger volume: 2.2 gal
- Lower heat exchanger volume: 3.0 gal
- Working pressure: 150 psi/10 bar
- Tested to pressure: 217 psi/15 bar
- Max. pressure of boiler loop: 150 psi/10 bar
- Max. temp. upper loop: 266°F
- Max. temp. lower loop: 266°F
- Surface area of heat exchanger, upper: 2015 in2
- Surface area of heat exchanger, lower: 2635 in2
- Height with insulation: 72-3/4"
- Width with insulation: 29-1/2"
- Thickness of insulation: 3"
- Tank weight empty: 412 lb
- Tank weight full: 1362 lb
- Standby losses in 24 hours: 7,500 BTU/2.2 kWh.
