SB 400 E Single Heat Exchanger Indirect Storage Tank 106 gal. 234111

Stiebel Eltron  |  SKU: 234111  |  Barcode: 040232177132
Regular price $2,87400

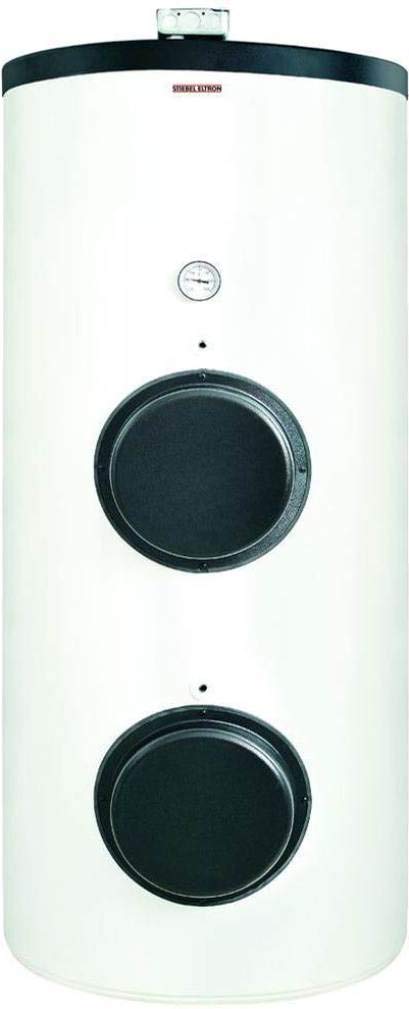

Stiebel Eltron 234111 Model SB 400 E Domestic Single Heat Exchanger Hot Water Tank with Electric Element for Solar, Geothermal or Hydronic Applications; 105.6 Gallon Capacity

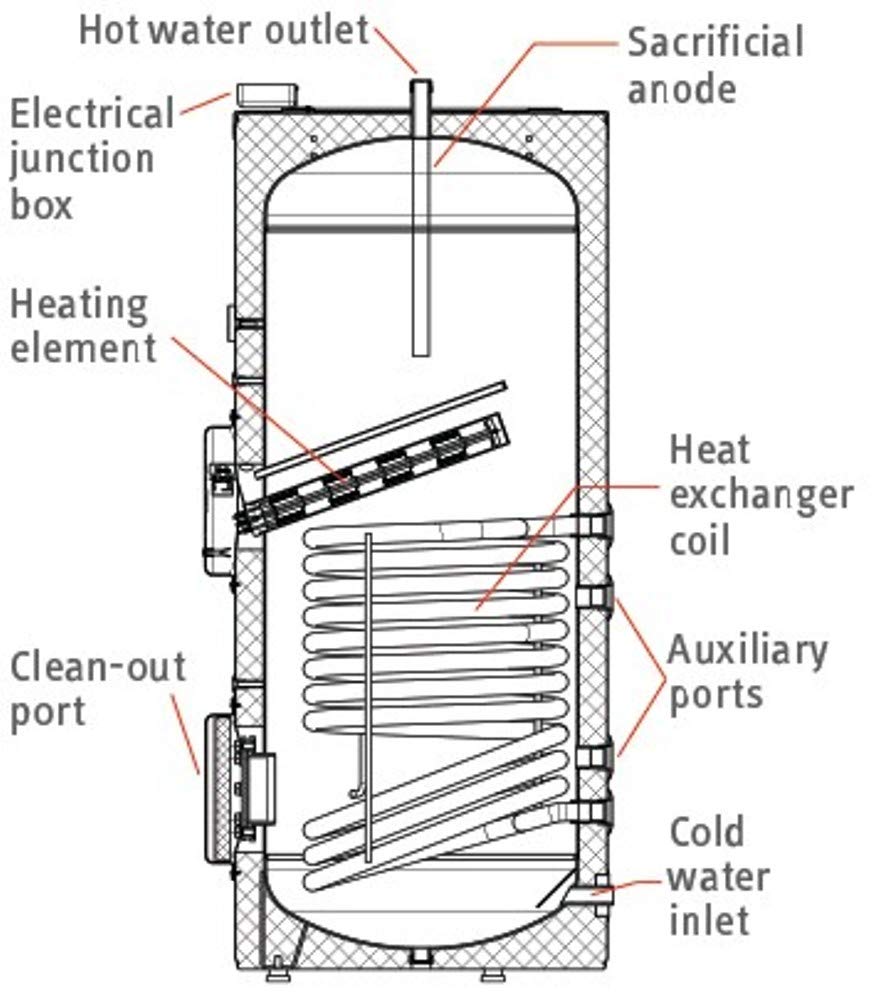

All Stiebel Eltron SBB/SB-E series tanks are made in our factories in Germany and Slovakia. They can be used in residential or commercial installations as indirectly-fired domestic hot water storage tanks in conjunction with any type of boiler, geothermal, or solar hot water application. The vessels and heat exchangers in SBB/SB-E tanks are made from heavy gauge steel. All surfaces in contact with domestic hot water receive a thick porcelain enamel coating after shot-peening to clean the steel surface. All SBB/SB-E tanks come with heavy-duty sacrificial anodes and visible anode wear indicators.

Key Features
  • Heavy gauge steel with porcelain enamel coating
  • Superb quality results in long service life
  • Fitted with one or two large heat exchangers
  • Sacrificial anode rod
  • Up to 3" R-21 urethane foam insulation for low standby heat loss
  • Large clean out port for ease of maintenance
Specifications
  • Storage capacity: 105.6 gal
  • Heat exchanger volume: 2.9 gal
  • Surface area of heat exchanger: 20.6ft2
  • Working pressure: 145 PSI/10 bar
  • Heating element voltage: 220-240V
  • Heating capacity: 10,239 BTU/hr/3.0kW
  • Frequency: 60Hz
  • Rated current: 12.5A
  • Required circuit breaker: 20A
  • Heating element type: Dome element
  • Heating element material: Ceramic
  • Set range of thermostat: 86°F-167°F
  • Cold/hot water connection: 1" male NPT
  • Heat exchanger & auxiliary connections: 1" female NPT
  • Standby losses in 24 hours: 3 kW/10236 BTU
  • Height: 60-13/16"
  • Diameter 29-1/2"
  • Insulation thickness 2"
  • Diameter without insulation 25-9/16"
