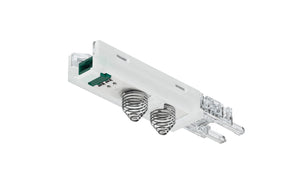

Häfele 833.89.291 Inline Profile Dimmer Switch, Modular, with Memory Function, for 1103/1105/2102/2103/2104 Profiles, Soft on/off switching and dimming, 24V, max. connected wattage 90W
Switch is concealed under the diffuser
Dimming range 5% - 100%
Dimming level is retained after switching off (memory function). The light stays off in the de-energized condition.
Specifications
| Switch type | Dimm switch |
|---|---|
| Switching contact | with touch |
| Input ports | 1 x socket, Loox5 modular with intervals 2-pin 24 V |
| Outputs | 1 x Clip, Loox5 LED strip light 8 mm monochrome |
| Connected output ports | 1 x Clip, Loox5 LED strip light 8 mm monochrome |
| Color/finish | opal |
| Switching function | On/off soft, touchless, dim (with memory function) |
| Memory function | Yes (also in currentless condition) |
| Plug of required low voltage cable | Loox5 2-pin 24 V |
| Power rating | 120 W |
| Area of application | For use with monochrome 8 mm (5/16") LED strip lights in aluminum profiles with 11 mm (7/16") internal width |
| Suitable for | Profile 1103, Profile 1105, Profile 2101, Profile 2102, Profile 2103, Profile 2104 |
| Material | Plastic |
| Installation | For sliding into aluminum profile |
| Installation reference | Can be used for other aluminum profiles with a similar clear internal height to the specified models (approx. 12–14 mm).Shorten LED strip light by approx. 50 mm in relation to the total length of the aluminum profile.No diffuser shortening required, since the diffuser covers the dimmer. |
| Order reference | Cannot be used with COB or tunable white LED strip lights. Do not combine with other dimmers.Please order lead (modular with Loox5 2-pin snap-in connector) separately.Please note nominal voltage and current carrying capacity!24 V/5 A, 1000 mm: Cat. No. 833.95.836, 2000 mm: Cat. No. 833.95.835 |
| Supplied with | 1 dimmer |
Pricing
Model #: 833.89.291
Manufacturer’s Price: $36.00
Online Price: $25.99
