Häfele 909.03.910 Mounting Set, One-Sided, for Pull Handles Invisible, for Wood Doors (Concealed), With Rampa Sleeve - Tearsheet

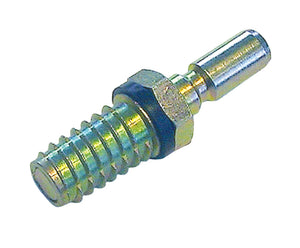

Häfele 909.03.910 Mounting Set, One-Sided, for Pull Handles Invisible, for Wood Doors (Concealed), With Rampa Sleeve

Square spindles and screws for the specified door thicknesses are supplied with the sets.

Area of application	For Ø 25 mm (1") and Ø 30 mm (1 3/16") pull handles
Screw length	25 mm
Drill hole Ø	13.50 mm
Thread diameter (inch)	M10
Drill bit (inch)	9/16"
Suitable for	Startec door handle, model PH 2110, 2111, 2112, 2113, 2114, 2115, 2116, 2117, 2118, 2121, 2122, 2126, 2127, 2130, 2131, 2132, 2133, 2134, 2135, 2844, 2866
Door type	Wooden doors
Supports	for straight supports
Thread Ø	M10
Installation	with screw-in sleeve on one side
Order reference	Two mounting sets are required for each door handle when installed on one side.

Model #: 909.03.910

Manufacturer’s Price: $21.34

Online Price: $15.41
