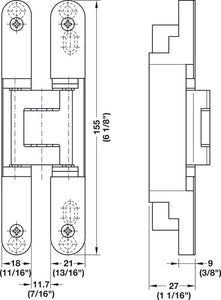

Häfele 924.18.910 TECTUS - Concealed Hinge, TE 240 3D, 3D adjustable, size 155 mm, Bronze finish
Maintenance-free slide bearings
Specifications
| Mounting | For DIN left and DIN right hand use |
|---|---|
| Flange shape | rounded |
| Flange width | 21 mm / 18 mm |
| Material | Steel, Aluminum, Zinc alloy |
| Flange height | 155 mm |
| Door weight max. | 132 lbs |
| Door thickness min. | 1" |
| Area of application | Used in door frames made out of hollow metal or wood for flush doors |
| For frame type | Wooden frame, Steel frame, Aluminium frame |
| Max. door weight for 2 hinges | 60 kg |
| Opening angle | 180 ° |
| Door thickness | ≥25 mm |
| Router bit Ø | 5/8”; Guide: 1 3/16" |
| Thrust ring Ø | 30 mm |
| Bearing type | Friction bearing, maintenance-free |
| Adjustment facility | Side adjustment ±3 mm, Height adjustment ±3 mm, Closing pressure adjustment facility ±1.5 mm |
| Standard | Certified in compliance with EN 1935:2002 |
| Grade | 3|7|3|1|1|4|0|10 |
| Color/finish | Bronze colored |
Pricing
Model #: 924.18.910
Manufacturer’s Price: $382.88
Online Price: $276.44
