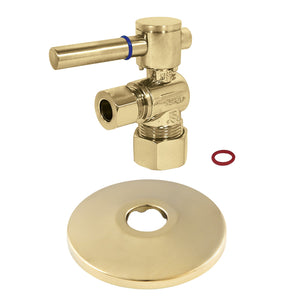

CC53302DLK 5/8-Inch OD Comp x 3/8-Inch OD Comp Quarter-Turn Angle Stop Valve with Flange, Polished Brass

CC53302DLK 5/8-Inch OD Comp x 3/8-Inch OD Comp Quarter-Turn Angle Stop Valve with Flange, Polished Brass

Kingston Brass shut off valves are manufactured to the highest quality standards offering reliable performance and superior quality at an exceptional value. Built to last with an easy to remove handle, these valves are designed to be leak free with different finishes that are all corrosive resistant and show off a refined apperance. Use to turn water off at the source.

Features

• Solid brass construction
• Anti-seize stainless steel ball pattern valve
• Quarter-turn operation
• Inlet: 5/8" O.D. comp
• Outlet: 3/8" O.D. comp
• 2-3/16" height
• 1-7/8" width
• Premier finish lever handle
• Installs on any 1/2" CTS stub-out

Downloads / Specs

	Specification Sheet
	Parts Diagram
	Installation Guide
