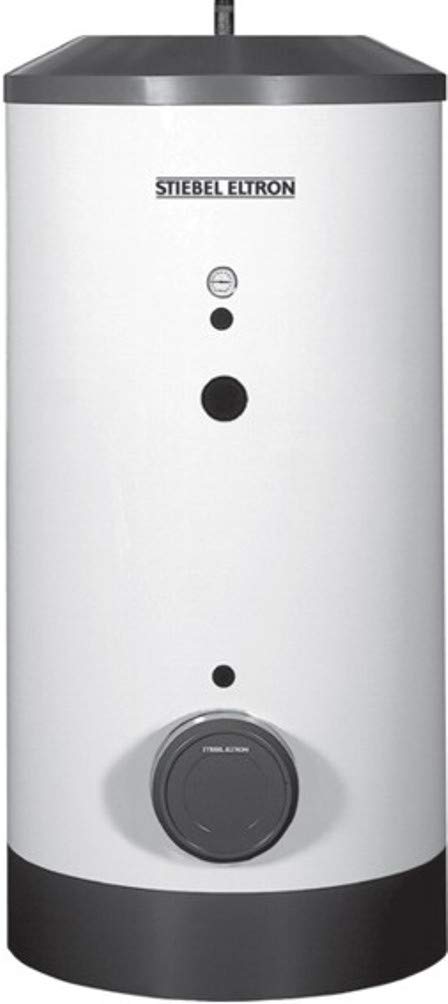

Stiebel Eltron 187875 Model SBB 600 Plus Domestic Dual Heat Exchanger Hot Water Tank for Solar, Geothermal or Hydronic Applications; 162.9 Gallon Storage Capacity, 150 psi/10 bar Working Pressure
All Stiebel Eltron SBB/SB-E series tanks are made in our factories in Germany and Slovakia. They can be used in residential or commercial installations as indirectly-fired domestic hot water storage tanks in conjunction with any type of boiler, geothermal, or solar hot water application. The vessels and heat exchangers in SBB/SB-E tanks are made from heavy gauge steel. All surfaces in contact with domestic hot water receive a thick porcelain enamel coating after shot-peening to clean the steel surface. Up to three inches of urethane foam insulation ensures that hot water stays hot, and standby heat loss is minimized.
Key Features- Heavy gauge steel with porcelain enamel coating
- Superb quality results in long service life

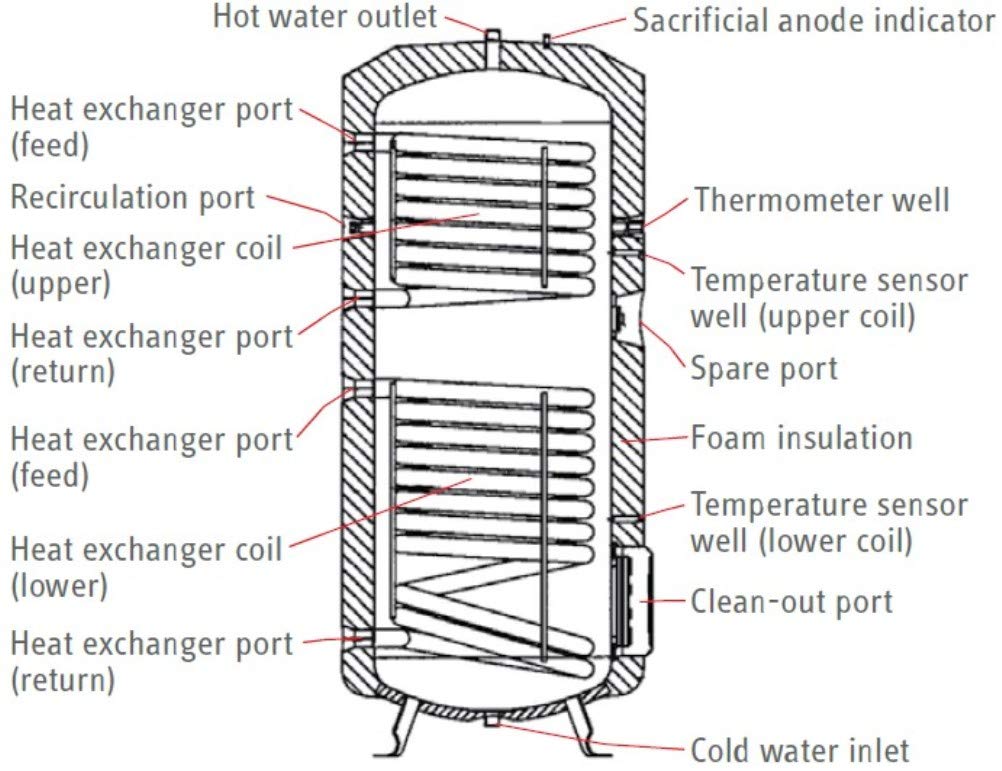

- Fitted with one or two large heat exchangers
- Sacrificial anode rod
- Up to 3" R-21 urethane foam insulation for low standby heat loss
- Large clean out port for ease of maintenance
- Storage capacity: 162.9 gal
- Upper heat exchanger volume: 2.5 gal
- Lower heat exchanger volume: 3.5 gal
- Working pressure: 150 psi/10 bar
- Tested to pressure: 217 psi/15 bar
- Max. pressure of boiler loop: 150 psi/10 bar
- Max. temp. upper loop: 266°F
- Max. temp. lower loop: 266°F
- Surface area of heat exchanger, upper: 2945 in2
- Surface area of heat exchanger, lower: 3875 in2
- Height with insulation: 68-5/16"
- Width with insulation: 36-1/4"
- Thickness of insulation: 3-11/32"
- Tank weight empty: 544 lb
- Tank weight full: 1955 lb
- Standby losses in 24 hours: 10000 BTU/1.9 kWh
