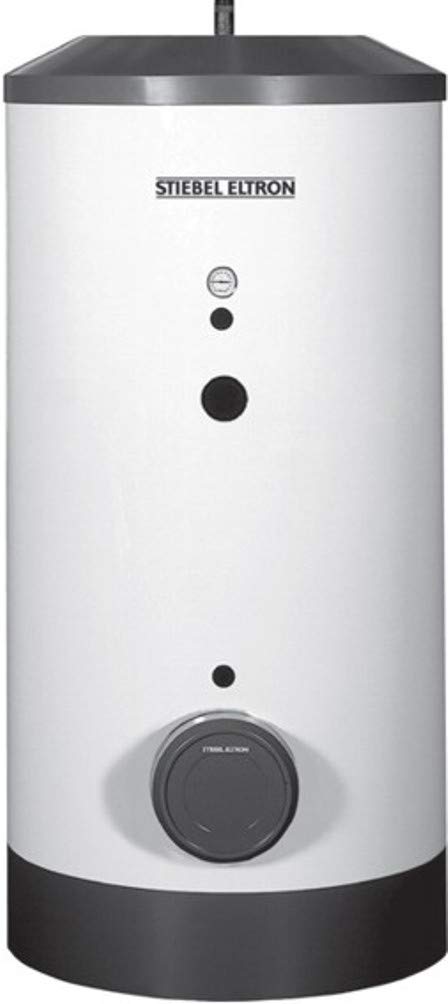

SBB 600 Plus Dual Heat Exchanger Indirect Storage Tank 163 gal. 187875

Stiebel Eltron  |  SKU: 187875  |  Barcode: 040232177149
Regular price $3,47900

Stiebel Eltron 187875 Model SBB 600 Plus Domestic Dual Heat Exchanger Hot Water Tank for Solar, Geothermal or Hydronic Applications; 162.9 Gallon Storage Capacity, 150 psi/10 bar Working Pressure

All Stiebel Eltron SBB/SB-E series tanks are made in our factories in Germany and Slovakia. They can be used in residential or commercial installations as indirectly-fired domestic hot water storage tanks in conjunction with any type of boiler, geothermal, or solar hot water application. The vessels and heat exchangers in SBB/SB-E tanks are made from heavy gauge steel. All surfaces in contact with domestic hot water receive a thick porcelain enamel coating after shot-peening to clean the steel surface. Up to three inches of urethane foam insulation ensures that hot water stays hot, and standby heat loss is minimized.

Key Features
  • Heavy gauge steel with porcelain enamel coating
  • Superb quality results in long service life

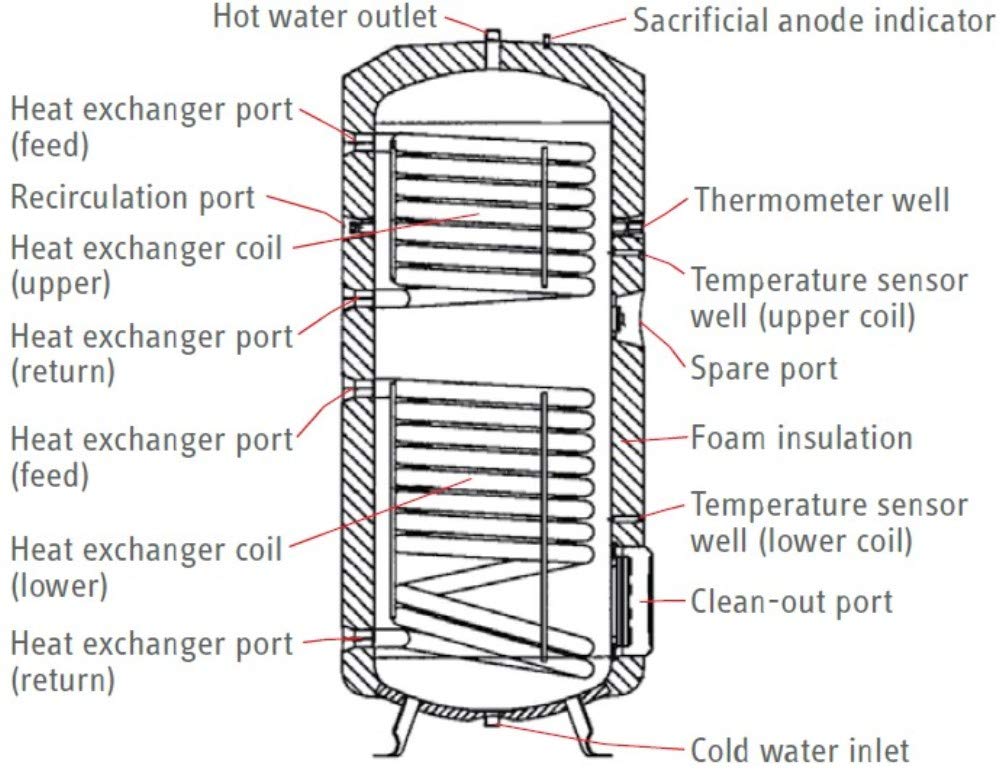

  • Fitted with one or two large heat exchangers
  • Sacrificial anode rod
  • Up to 3" R-21 urethane foam insulation for low standby heat loss
  • Large clean out port for ease of maintenance
Specifications
  • Storage capacity: 162.9 gal
  • Upper heat exchanger volume: 2.5 gal
  • Lower heat exchanger volume: 3.5 gal
  • Working pressure: 150 psi/10 bar
  • Tested to pressure: 217 psi/15 bar
  • Max. pressure of boiler loop: 150 psi/10 bar
  • Max. temp. upper loop: 266°F
  • Max. temp. lower loop: 266°F
  • Surface area of heat exchanger, upper: 2945 in2
  • Surface area of heat exchanger, lower: 3875 in2
  • Height with insulation: 68-5/16"
  • Width with insulation: 36-1/4"
  • Thickness of insulation: 3-11/32"
  • Tank weight empty: 544 lb
  • Tank weight full: 1955 lb
  • Standby losses in 24 hours: 10000 BTU/1.9 kWh
