Häfele  |  SKU: 231.53.861

Häfele 231.53.861 Safe-O-Mat® - Coin Collect, 800 Series, 2x quarters, right hand

Sale price $10307 Regular price $14276
MSRP i MSRP stands for Manufacturer's Suggested Retail Price, the price the manufacturer recommends selling this product at.

At a glance

Brand
Häfele
Material
Plastic; Cash box: Steel

Please contact Häfele at 1-800-423-3531 and have the following information available:
“Handing” specifications
Key Plan specifications

Each lock requires (sold separately):
Cylinder core and user key
Cash box

Every order requires (sold separately):
Cylinder change (removal) key
Master key
Cash box key


Screw length depends on door thickness.
Other currency or token locks available upon request.

Specifications

Color/finish Gray, Housing: Anthracitecylinder: Matt nickel plated
Type of locking with 6 pin tumblers

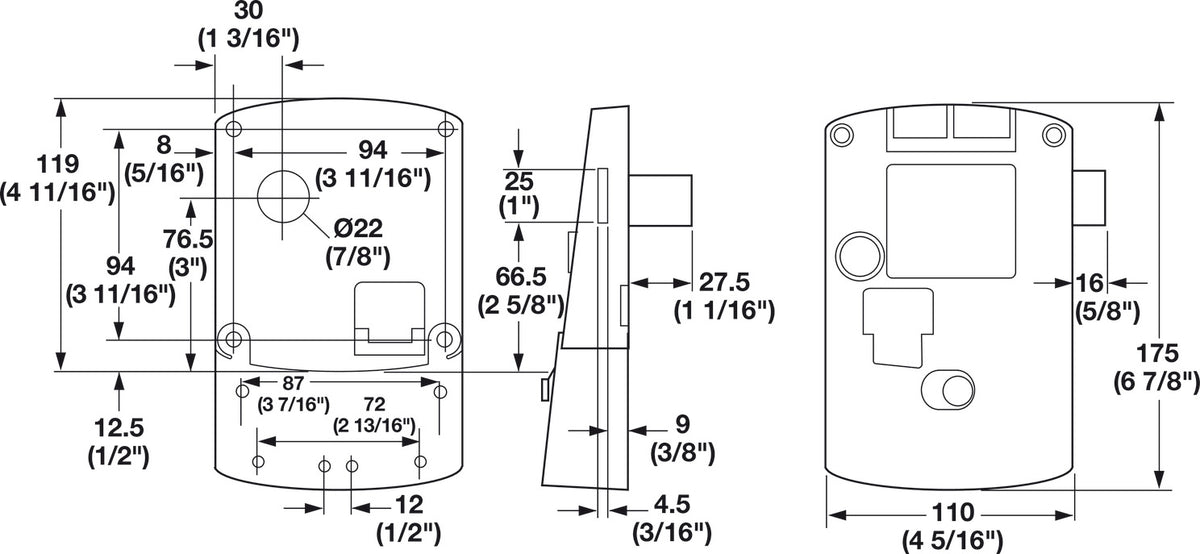

Dim. (L x W x H) 110 x 58 x 175 mm
Backset 30 mm
Installation For screw fixing
Mounting
Model series 800 - Coin Collect
Length (inch) 4 5/16"
Width (inch) 2 1/4"
Height (inch) 6 7/8"
For door thickness min. 1/2"
For door thickness max. 1"
For cabinet width Min: 5 1/2"
Area of application • Fitness centers• Amusement parks• Resorts• Transportation terminals
Material Plastic; Cash box: Steel
Cylinder length 27 mm
Cylinder Ø (mm) 22 mm
Weight 0.60 kg
Installation reference Please contact Häfele at 1-800-423-3531 and have the following information available:“Handing” specifications; Key Plan specifications; Each lock requires (sold separately):Cylinder core and user key; Cash box; Every order requires (sold separately): Cylinder change (removal) key; Master key; Cash box key; Screw length depends on door thickness.Other currency or token locks available upon request.
Supplied with 4 mounting screws; Outside instructions decal per pc.
Version 2x quarters
