Häfele 231.98.017 Keypad Lock, Safe-O-Tronic® LS200, Horizontal right with knob on left, white

Sale price $37245 Regular price $51586
MSRP i MSRP stands for Manufacturer's Suggested Retail Price, the price the manufacturer recommends selling this product at.

At a glance

Brand
Häfele
Material
Lock body: Aluminum; Face plate: Plastic; Cam: Steel

SAFE-O-TRONIC® access LS 200 is a lock used to electrically control cabinet doors, drawers and lockers. This lock operates in a day use mode. Lock is electrically eleased with a correct PIN code entered on the keypad.

Lock complies with ADA standards for door locks
Lock is easily programmed by user with easy to use keypad
Lock mounts vertically for raised panel doors
Lock powered by a 3-AAA battery pack (included)(item 231.98.210)
Low battery indicator via external LEDs
Designed to pass the ANSI/BIFMA 50 lbf. pull strength specification
Long battery life (10 lock cycles per day for four years)
Easy installation with only two drill points
One programming key set required for project

LS 200 programming key set required for programming and master key operation (see below)

Batteries changed with Torx™ screw driver (see below).

Specifications

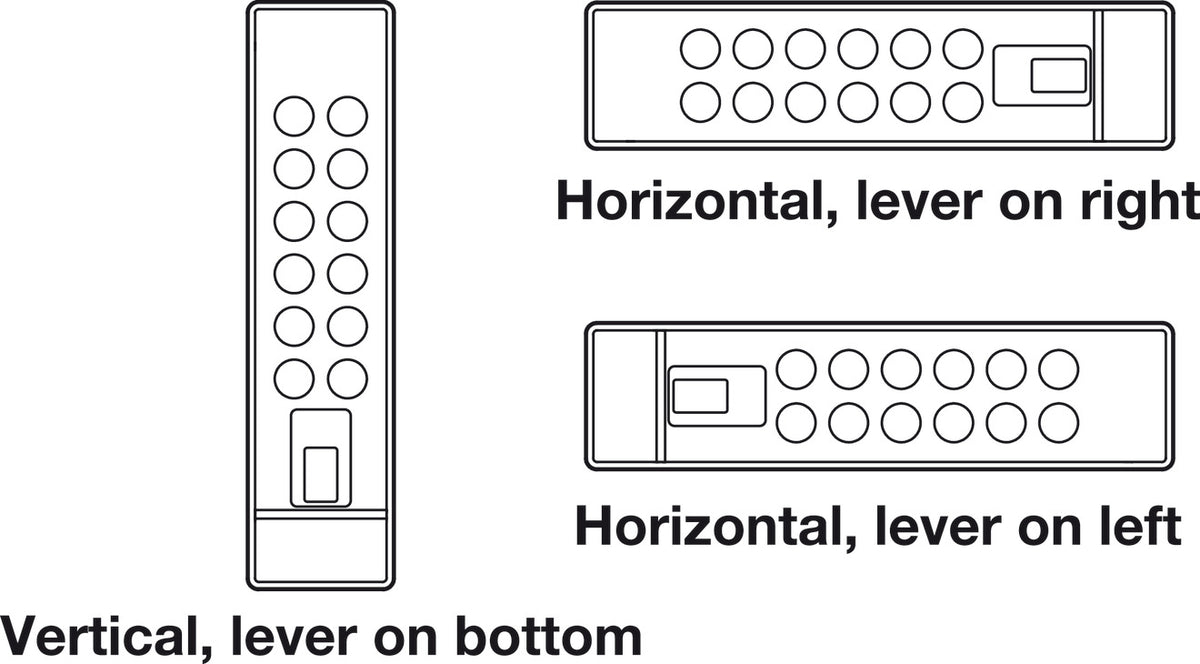

Version Horizontal, Lever on left
Color/finish Black; Lock body: Gray
Operation modes Day Use Mode, Fixed Use Mode
Dim. (L x W x H) 151 x 38 x 33 mm
Model series LS200
Area of application For installation in wood, laminate, plastic and metal doors and drawers
Material Lock body: Aluminum; Face plate: Plastic; Cam: Steel
For door thickness ≤19 mm
Installation reference SAFE-O-TRONIC® access LS 200 is a lock used to electrically control cabinet doors, drawers and lockers. This lock operates in a day use mode. Lock is electrically eleased with a correct PIN code entered on the keypad.Lock complies with ADA standards for door locks; Lock is easily programmed by user with easy to use keypad; Lock mounts vertically for raised panel doors; Lock powered by a 3-AAA battery pack (included)(item 231.98.210); Low battery indicator via external LEDs; Designed to pass the ANSI/BIFMA 50 lbf. pull strength specification; Long battery life (10 lock cycles per day for four years); Easy installation with only two drill points; One programming key set required for project
Supplied with Nut; Straight cam; Mounting screw; Spacers; Instructions3-AAA battery pack
