Häfele  |  SKU: 231.98.090

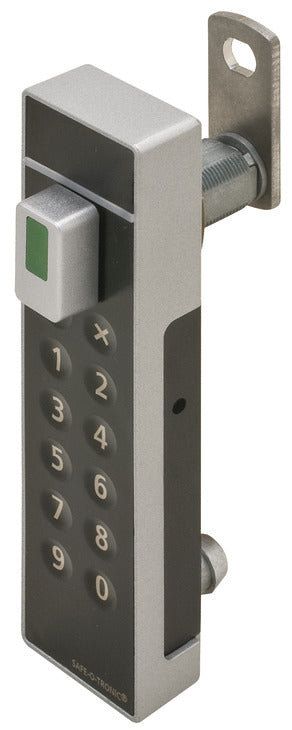

Häfele 231.98.090 Keypad Lock, Safe-O-Tronic® LS 150, Vertical with knob at top, black

Sale price $36120 Regular price $60033
MSRP i MSRP stands for Manufacturer's Suggested Retail Price, the price the manufacturer recommends selling this product at.

At a glance

Brand
Häfele
Material
Lock body: Aluminum; Face plate: Plastic; Cam: Steel

SAFE-O-TRONIC® access LS150 a lock used to electrically control cabinet doors, drawers and lockers. This lock operates in a day use or fixed mode. Lock is electrically released with correct PIN code enetered on the keypad.

Lock complies with ADA standards for door locks
Lock can be programmed with RFID FOBs for set up and emergency opening
Lock is easily programmed by user with easy to use keypad
Lock mounts vertically for raised panel doors
Lock powered by a 3-AAA battery pack (included)(item 231.98.210)
Low battery indicator via external LEDs
Designed to pass the ANSI/BIFMA 50 lbf. pull strength specification
Long battery life (10 lock cycles per day for four years)
Easy installation with only two drill points
For left hand and right hand operation
One programming key set required for project

LS 150 programming key set required for programming and master key operation (see below).

Batteries changed with Torx™ screw driver (see below).

Specifications

Version Vertical, Lever on top
Color/finish Black
Operation modes Day Use Mode, Fixed Use Mode

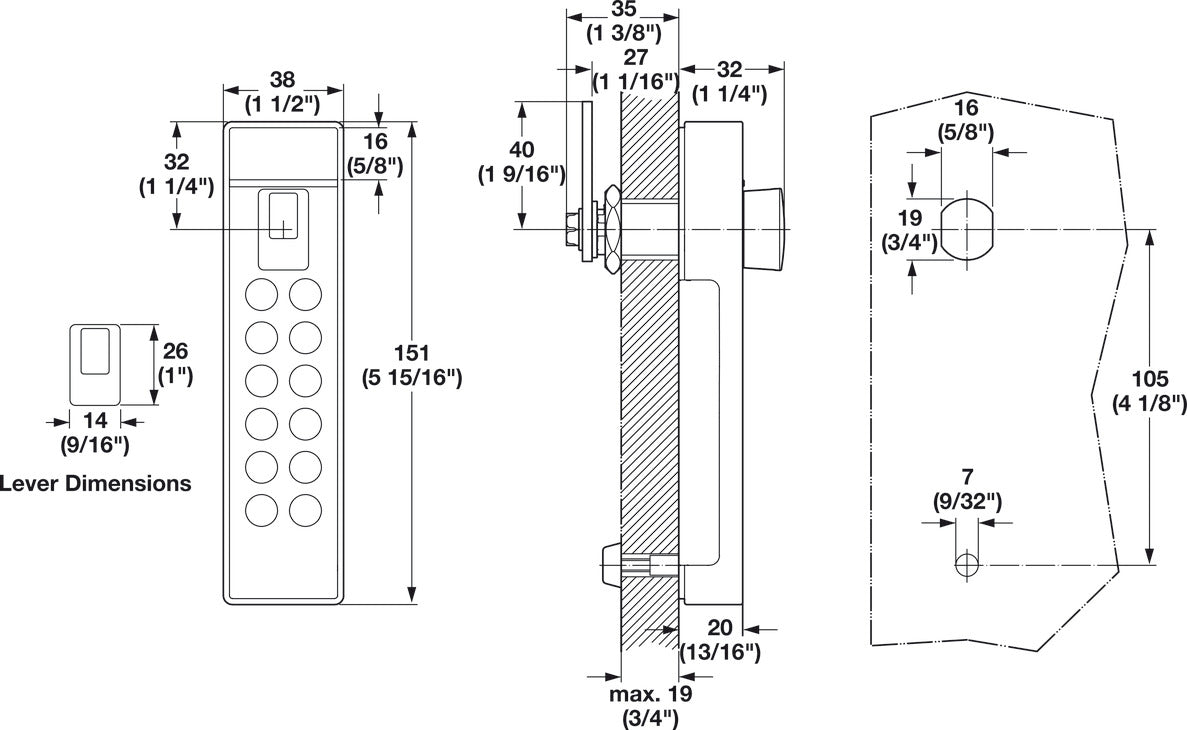

Dim. (L x W x H) 38 x 67 x 151 mm
Model series LS150
Area of application For installation in wood, laminate, plastic and metal doors and drawers
Material Lock body: Aluminum; Face plate: Plastic; Cam: Steel
For door thickness ≤19 mm
Installation reference SAFE-O-TRONIC® access LS150 a lock used to electrically control cabinet doors, drawers and lockers. This lock operates in a day use or fixed mode. Lock is electrically released with correct PIN code enetered on the keypad.Lock complies with ADA standards for door locks; Lock can be programmed with RFID FOBs for set up and emergency opening; Lock is easily programmed by user with easy to use keypad; Lock mounts vertically for raised panel doors; Lock powered by a 3-AAA battery pack (included)(item 231.98.210); Low battery indicator via external LEDs; Designed to pass the ANSI/BIFMA 50 lbf. pull strength specification; Long battery life (10 lock cycles per day for four years); Easy installation with only two drill points; For left hand and right hand operation; One programming key set required for project
Supplied with Nut; Straight cam; Mounting screw; Spacers; Instructions3-AAA battery pack
