Häfele  |  SKU: 237.59.032

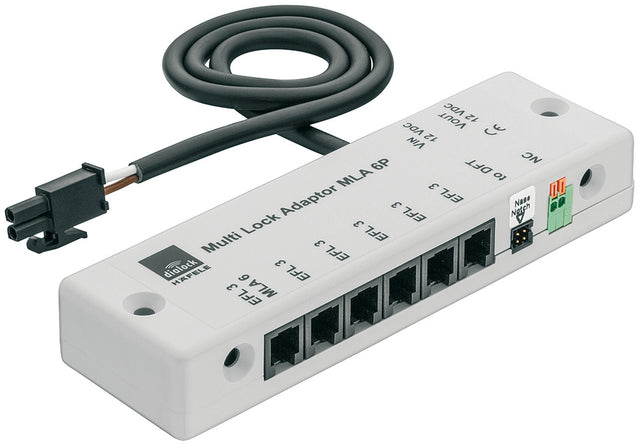

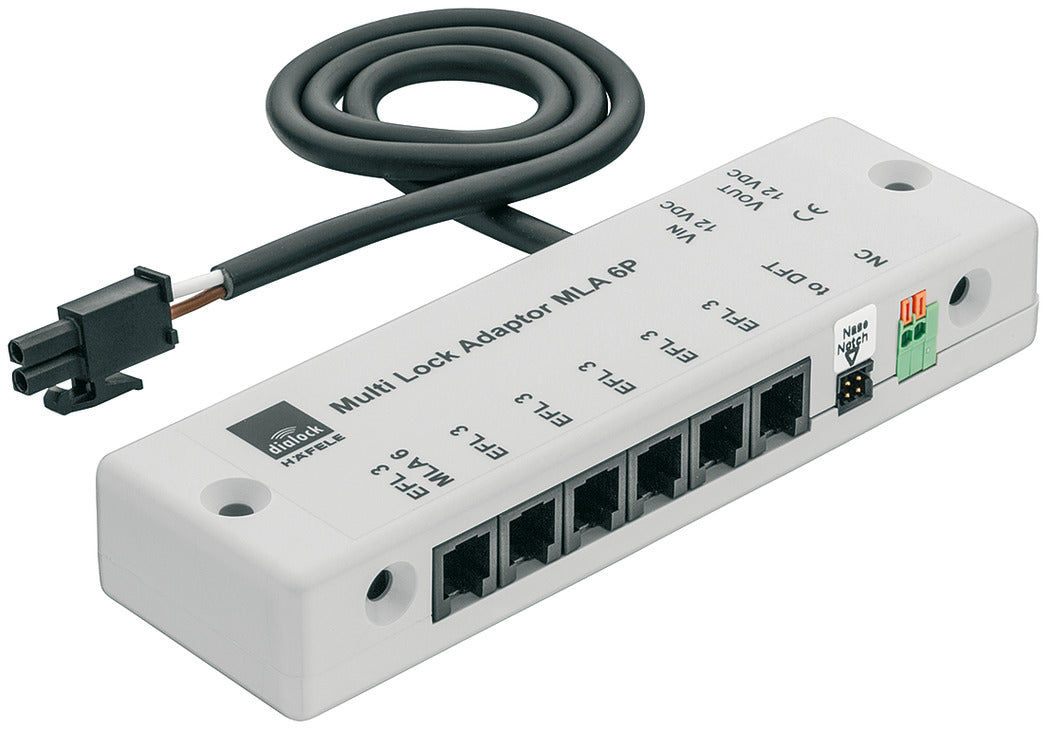

Häfele 237.59.032 Multi-Lock Adapter, MLA 6, for EFL 3/3C, EFL 80, Dialock®, Gray

Sale price $16241 Regular price $22494
MSRP i MSRP stands for Manufacturer's Suggested Retail Price, the price the manufacturer recommends selling this product at.

At a glance

Brand
Häfele
Material
Plastic

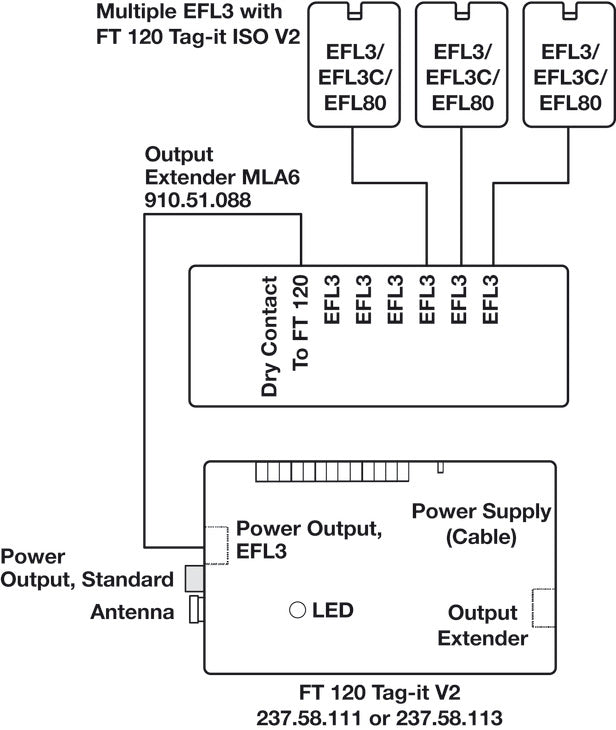

The MLA 6P multi-lock adapter is the link between the FT 200 furniture terminal and the EFL 3/EFL 3C furniture lock if more than four furniture locks have to be actuated.
The MLA 6P multi-lock adapter uses the incoming data signal from the FT 200 furniture terminal and forwards it to the EFL 3/EFL 3C furniture locks as a pulse for unlocking/locking.
Multi-lock adapter with keyed alike operation:
for 6 EFL 3 and EFL 3C furniture locks
other functions and special functions:
Transfer of feedback contacts (signalling the locking status of the EFL 3/EFL 3C furniture locks). A special add-on is available for this application on request).
The additional potential free contact at the NC output port signals unlocked furniture locks and can be used by systems from other providers.
Notes concerning operation
Note max. cable lengths, see CC 200 connection cable.
Please note the rated values of the system components.
The system can be easily extended with an additional MLA 8 at a later date.
Additional PS 4 power supply units are required, depending on the number of extensions or system size.

Specifications

Product Category Multi-Lock Adapter
Area of application Electronic output extender for indoor use: For keyed alike EFL 3/EFL 3C furniture locks
Material Plastic
Color/finish Gray
Operating temperature 0 – 50 °C
Suitable for Dialock device FT 200/FT 200 CAP
Functionality The MLA 6P multi-lock adapter is the link between the FT 200 furniture terminal and the EFL 3/EFL 3C furniture lock if more than four furniture locks have to be actuated.The MLA 6P multi-lock adapter uses the incoming data signal from the FT 200 furniture terminal and forwards it to the EFL 3/EFL 3C furniture locks as a pulse for unlocking/locking.Multi-lock adapter with keyed alike operation:for 6 EFL 3 and EFL 3C furniture locksother functions and special functions:Transfer of feedback contacts (signalling the locking status of the EFL 3/EFL 3C furniture locks). A special add-on is available for this application on request).The additional potential free contact at the NC output port signals unlocked furniture locks and can be used by systems from other providers.Notes concerning operation; Note max. cable lengths, see CC 200 connection cable.Please note the rated values of the system components.The system can be easily extended with an additional MLA 8 at a later date.Additional PS 4 power supply units are required, depending on the number of extensions or system size.
Order reference A CC 200 connection cable is required for each EFL 3/EFL 3C furniture lock. The CC 200 (G3) connection cables are only compatible with the EFL 3 (237.59.200)/EFL 3C (237.59.201) of the latest generation (G3) furniture locks. Suitable adapter cables (237.59.228/237.59.229) must be used for (existing) systems with previous generation connection cables (DG1/DG2).Please order fixing material (Hospa countersunk head screws 4 x 35 mm/4 x 55 mm) separately.
Supplied with 1 MLA 6P multi-lock adapter with connection cable (0.5 m)1 V2 connection cable (0.5 m) for connecting to the FT 200 furniture terminal
