Häfele  |  SKU: 262.87.041

Häfele 262.87.041 Countertop/Work Surface Connector, Maxifix 35, Bolt length BL: 68.5 mm, drilling dimension B: 32-41 mm

Sale price $269 Regular price $372
MSRP i MSRP stands for Manufacturer's Suggested Retail Price, the price the manufacturer recommends selling this product at.

At a glance

Brand
Häfele
Material
Housing: Zinc alloy; Bolt and pressure plate: steel

Provides a firm connection between two work surfaces via a 180° turn
Saves time and greatly simplifies assembly of tops
The semi-circular short steel plate pre-installed onto the bolt is simply inserted into the routed location and tightened with the Maxifix housing

Specifications

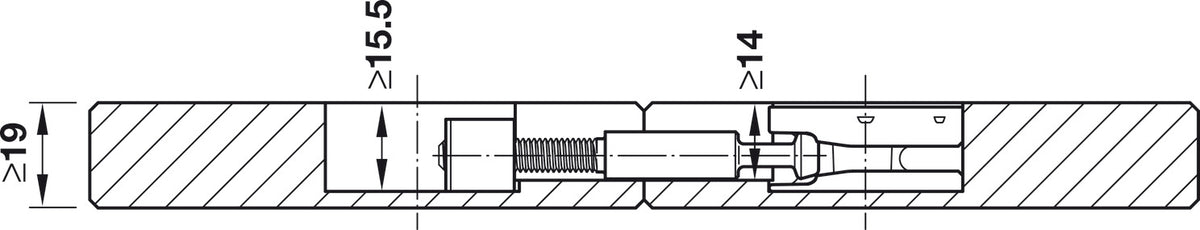

For wood thickness ≥19 mm
Drive Hexagon socket SW6
Area of application For two butting or mitre cut worktop sections
Material Housing: Zinc alloy; Bolt and pressure plate: steel
Color/finish Bolt: Zinc plated; Pressure plate: zinc plated, Housing: Brightbolt and pressure plate: Galvanized
Version Bolt and pressure plate are pre-mounted
Installation For recess mounting, with rapid-action clamping

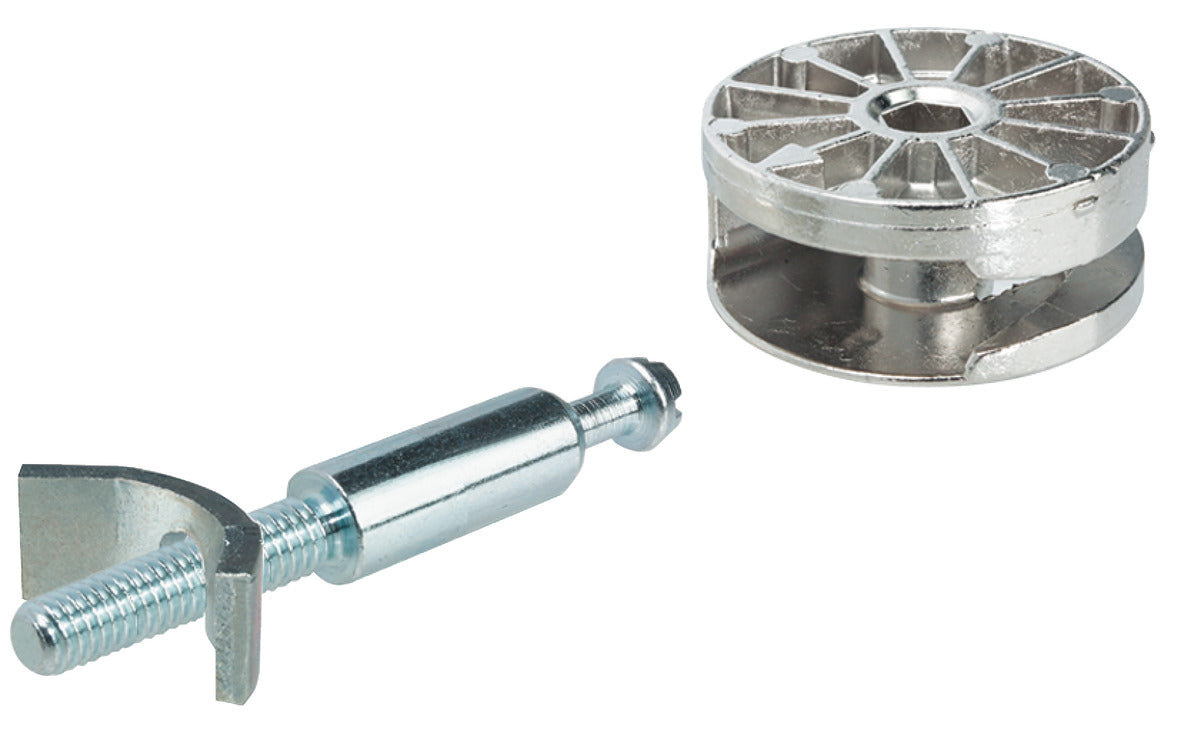

Supplied with 1 Maxifix 35 connector housing1 connecting bolt1 pressure plate

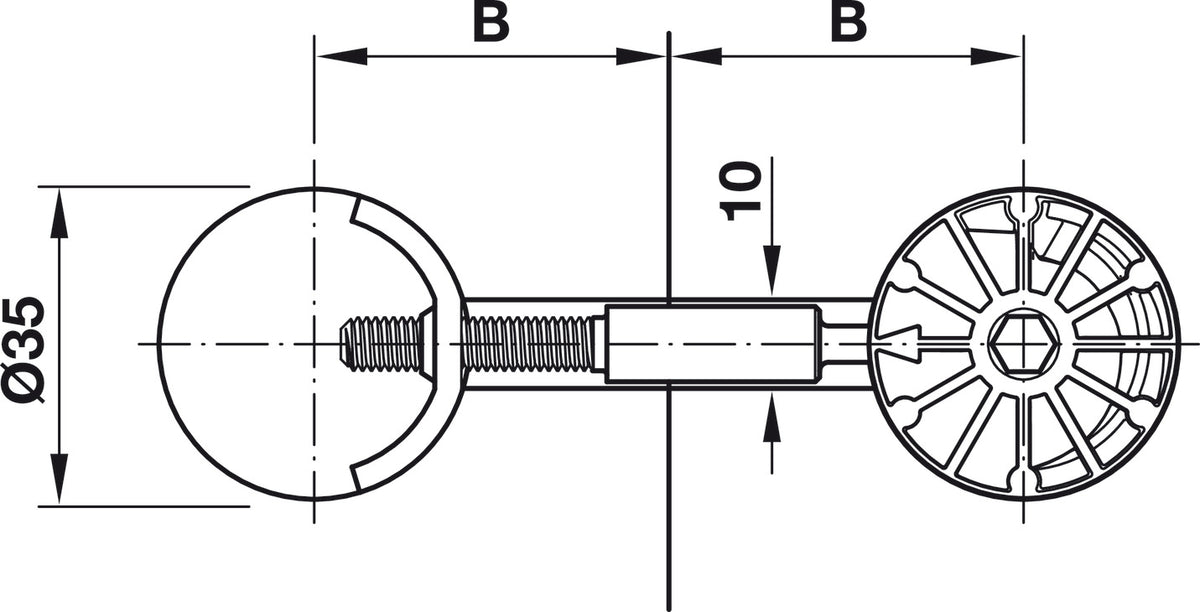

Center to Center 32 – 41 mm

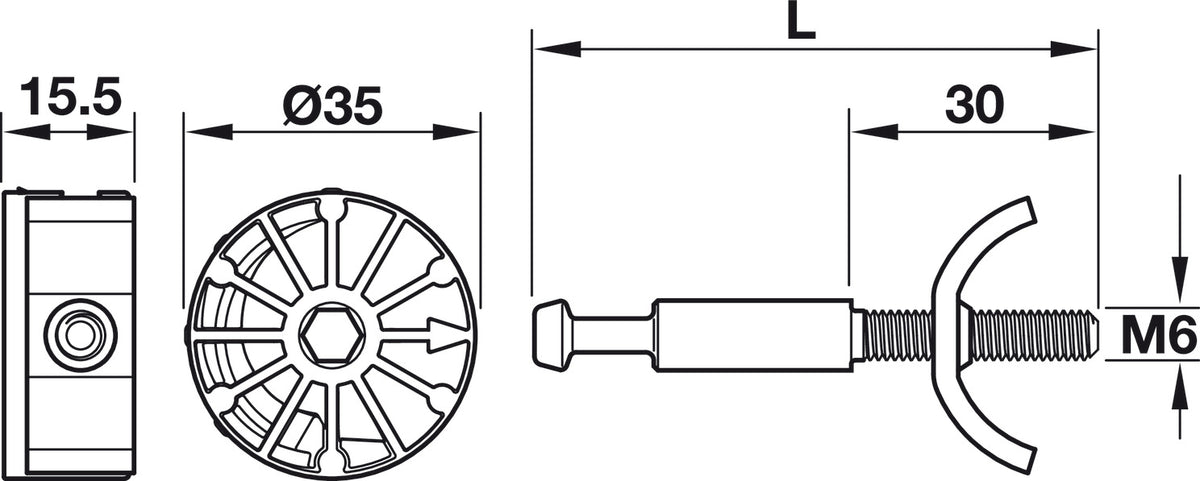

Bolt length 68.50 mm
