Häfele  |  SKU: 329.09.521

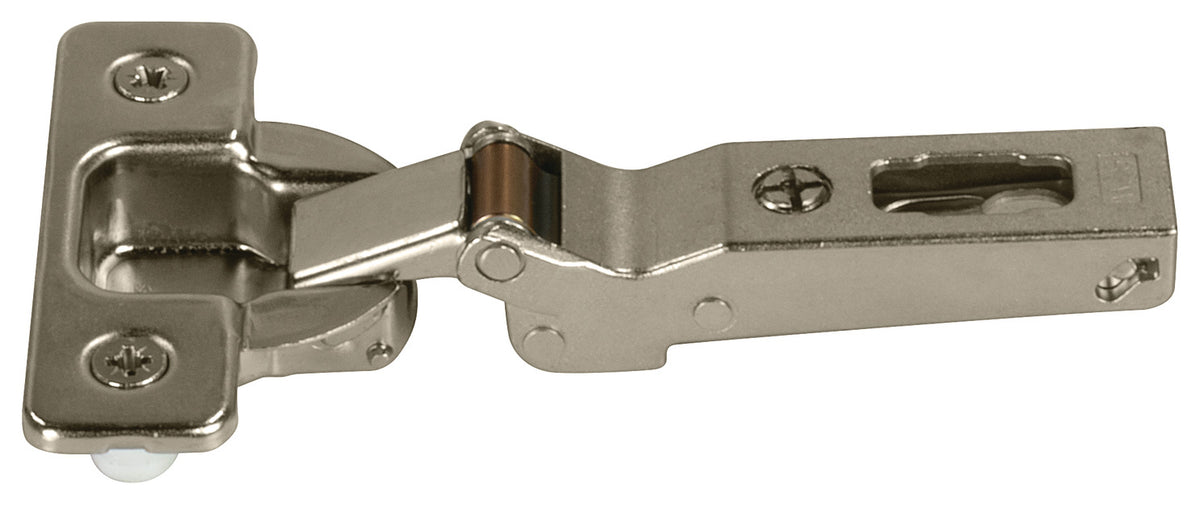

Häfele 329.09.521 Salice - Concealed Cup Hinge, 120°, for -30° corner application, cup fixing: For screw fixing, Self-close, press fitting, model C2RBW99

Sale price $596 Regular price $992
MSRP i MSRP stands for Manufacturer's Suggested Retail Price, the price the manufacturer recommends selling this product at.

At a glance

Brand
Häfele
Material
Cup: Steel, Hinge arm: Zinc alloy

The following drawings apply to mounting plates with a distance of 0.

Specifications

Area of application For wood doors
Version Self-close
Function With automatic closing spring, Without soft closing mechanism
Model No. C2RBW99
Concealed hinge version angled application
Crank type Corner application
For door material wood
Door processing for assembly with cup drilling
Material Cup: Steel, Hinge arm: Zinc alloy
Color/finish nickel plated
Opening angle 120°
Corner applications –30°
Cup drilling depth 11 mm
Cup drilling Ø 35 mm
Drilling pattern 45/9.5
Adjustment facility Side adjustment <4.5 mm, Height adjustment ±2 mm, depth adjustment with Metalla 510 A mounting plates +2.8 mm, with Metalla 510 SM mounting plates from -0.5/+2.8 mm
Installation Door on cabinet with slide-on system A or quick fixing system SM
Order reference Drilling patterns 45/9.5 and 52/5.5 available on request.
