Häfele  |  SKU: 343.91.600

Häfele 343.91.600 Aximat® - Folding Door Institutional Hinge, Opening Angle 180°, for Hawa Multifold, Nickel finish

Sale price $1588 Regular price $2200
MSRP i MSRP stands for Manufacturer's Suggested Retail Price, the price the manufacturer recommends selling this product at.

At a glance

Brand
Häfele
Finish
Nickel
Material
Zinc alloy

Plan number and position of folding door hinges in accordance with the number and position of the door hinges

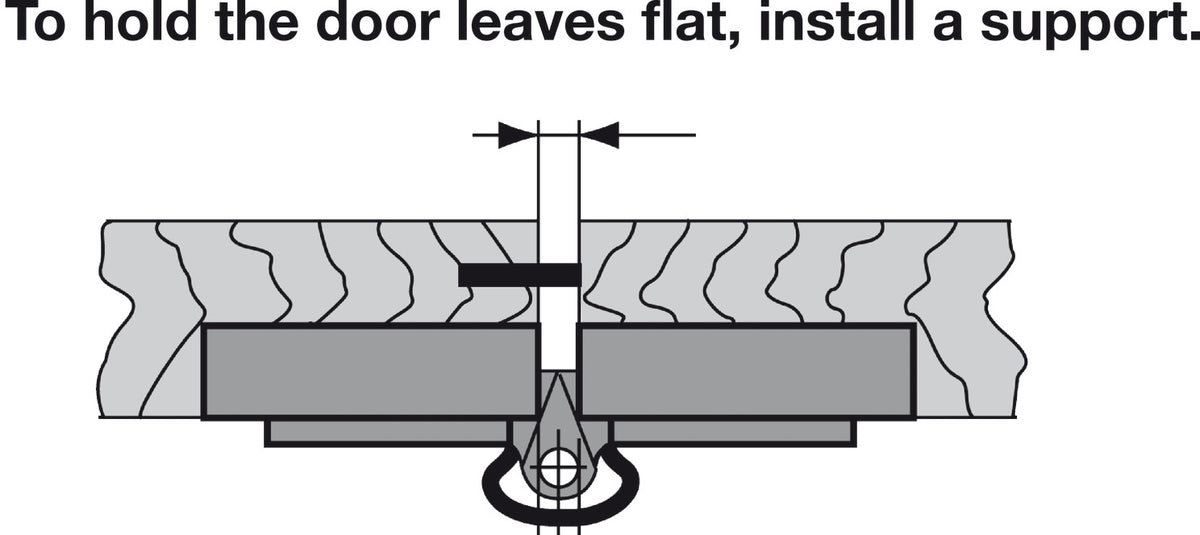

Provide spacer with gap > 0 mm

Specifications

Area of application for folding doors
Version With spring: Extending and folding spring force stabilised, with adjustable pivot offset
For door material wood
Door processing for assembly without
Material Zinc alloy
Color/finish Cup: nickel plated, Hinge arm: zinc plated
Opening angle 180°
For door thickness ≥13 mm
For door width ≤600 mm

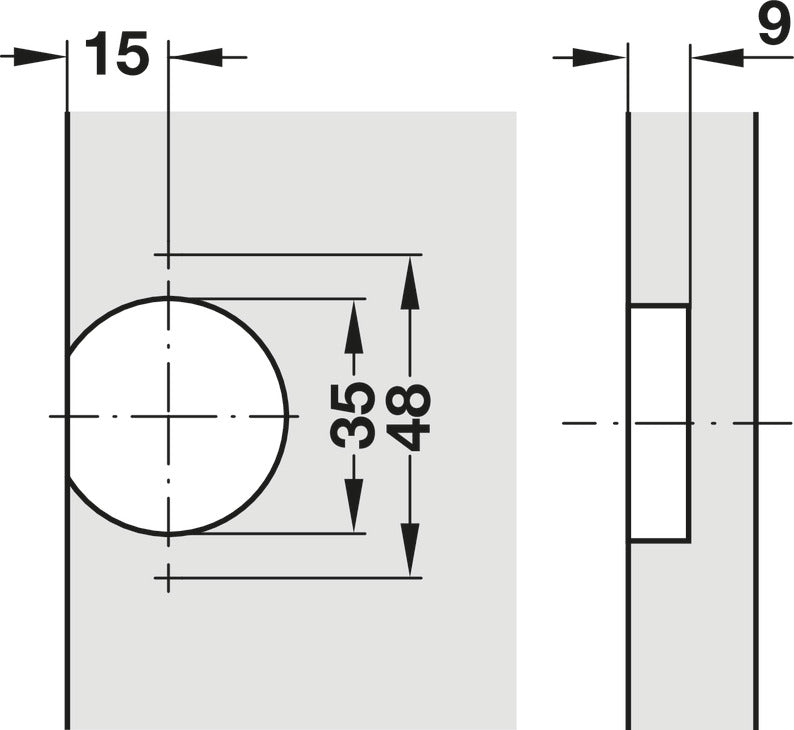

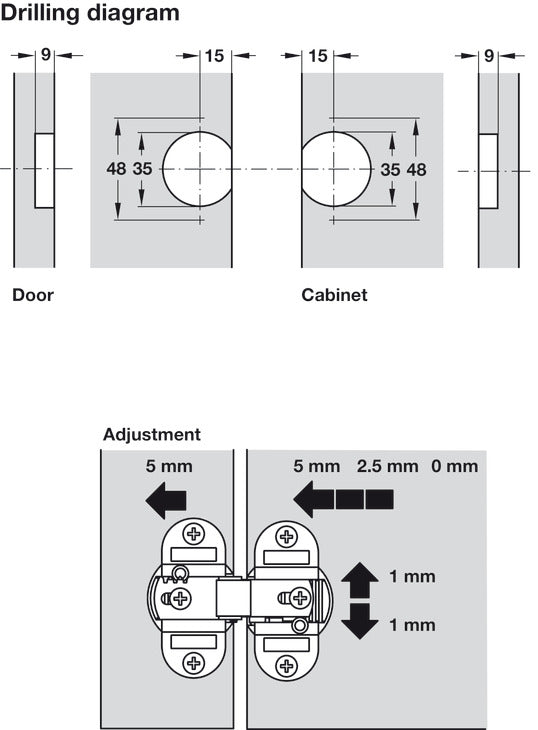

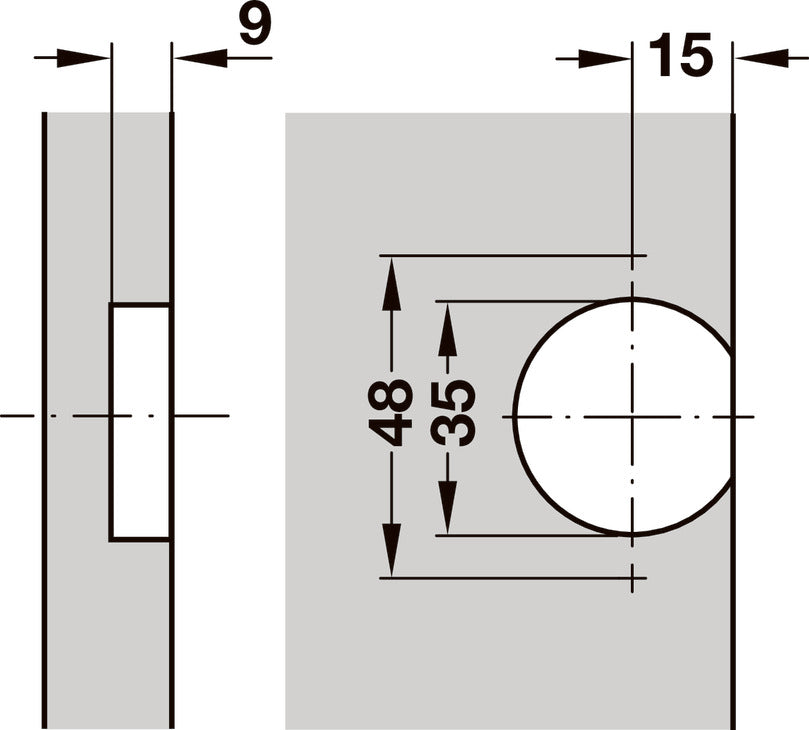

Cup drilling depth 9 mm
Cup drilling Ø 35 mm
Cup fixing for screw fixing

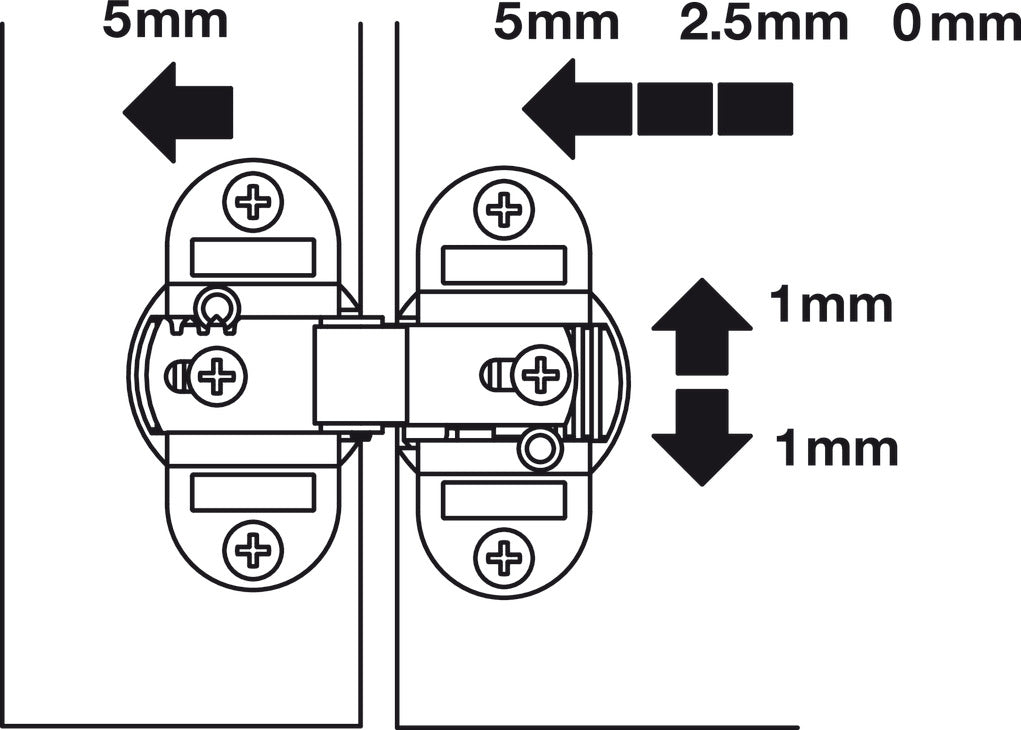

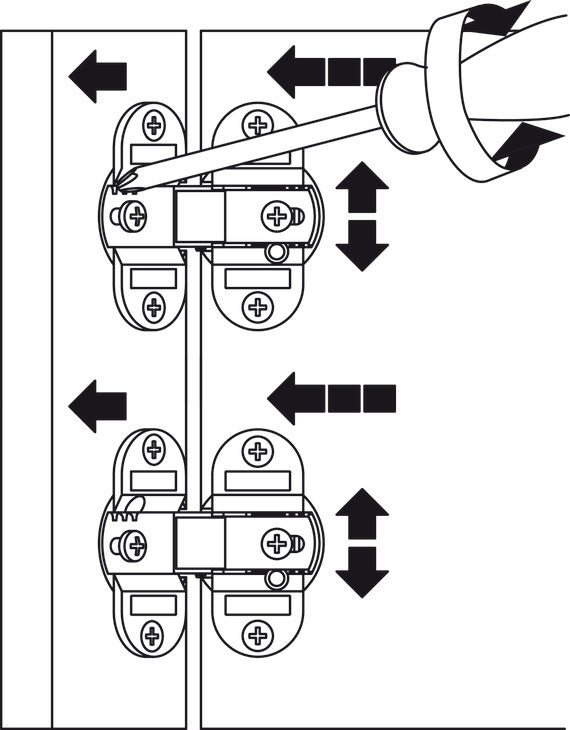

Adjustment facility Side adjustment 0/+5 mm, Height adjustment ±1 mm, gap adjustable 0/+10 mm (factory settings 3 mm, central pivot point)
Length (inch) 2' 1 19/32"
Installation For screw fixing
Installation reference Plan number and position of folding door hinges in accordance with the number and position of the door hinges; Provide spacer with gap > 0 mm
Häfele
Brand
Häfele Est. 1923
German-engineered hardware since 1923
Headquartered in Nagold, GermanySee on the brand atlas →
