Häfele  |  SKU: 348.31.102

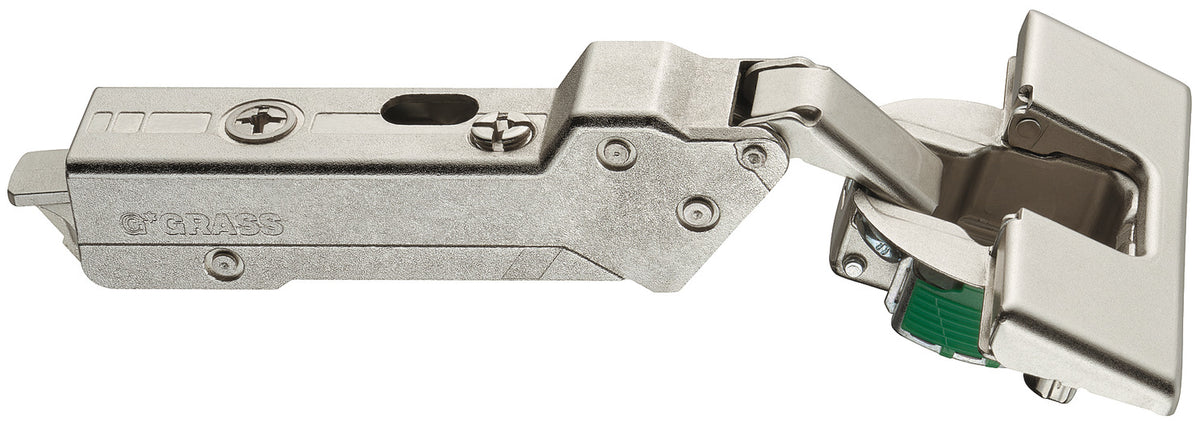

Häfele 348.31.102 Grass - Concealed Hinge, Tiomos, 110° Opening Angle, Half Overlay/Twin Mounting, for standard applications, Cup fixing: For screw fixing, with automatic closing spring, with soft-closing mechanism, model F046140365213

Sale price $1139 Regular price $1894
MSRP i MSRP stands for Manufacturer's Suggested Retail Price, the price the manufacturer recommends selling this product at.

At a glance

Brand
Häfele
Material
Cup: Steel, Hinge arm: Zinc alloy

Door overlay mm
5,5 6,5 7,5 8,5 9,5 10,5 11,5 12,5 13,5 14,5
3 4 5 6 7 -2
3 4 5 6 7 0
3 4 5 6 7 2
3 4 5 6 7 3

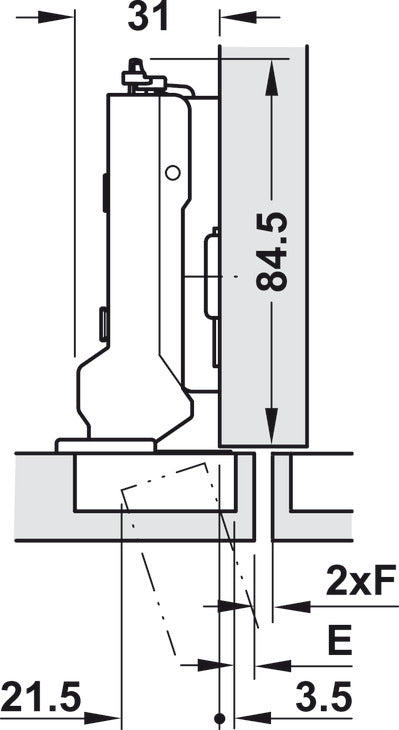

The dimensions in the drawings are calculated with a mounting plate, distance 2 mm.

Specifications

Area of application for standard applications
Concealed hinge version
Crank type Cranked
For door material
Door processing for assembly
Material Cup: Steel, Hinge arm: Zinc alloy
Color/finish nickel plated
Opening angle 110°
Cup drilling depth 12.60 mm
Cup drilling Ø
Adjustment facility Side adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2/+3 mm, Height adjustment depending on mounting plate
Installation Door on cabinet without tools with clip system
Order reference Please order Grass Tipmatic separately for hinges with opening mechanism.
Cup fixing for screw fixing
Drilling pattern 45/9.5
Function With automatic opening mechanism (Push), Without soft closing mechanism
