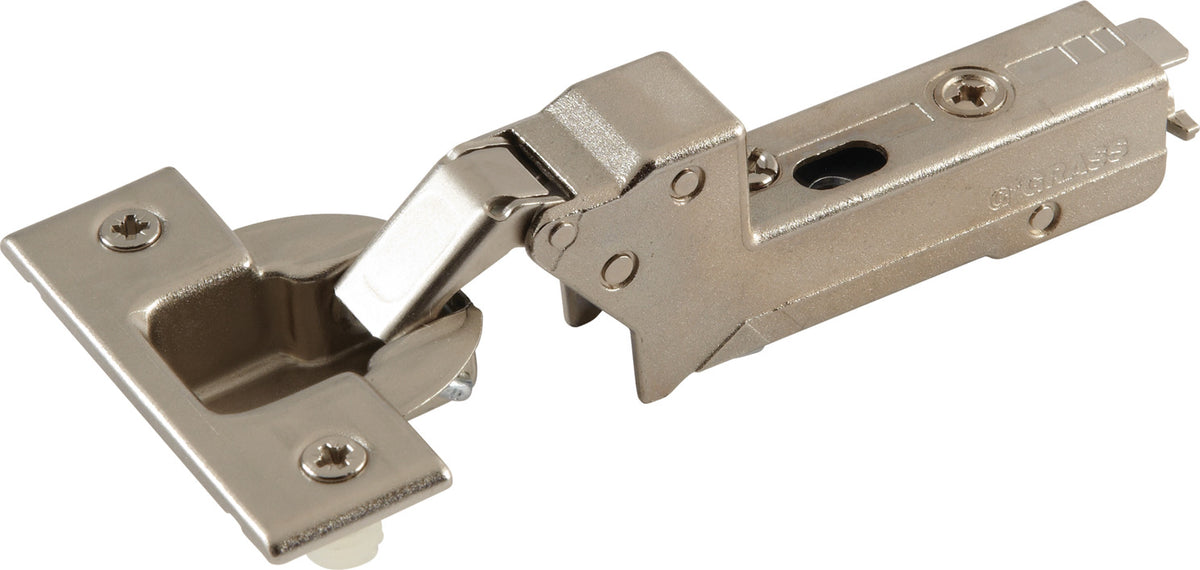

Häfele 348.31.813 Grass - Concealed Hinge, Tiomos, 110° Opening Angle, Inset Mounting, for standard applications, Soft-close, press-fit, model F028138526228

Sale price $1148 Regular price $1907
MSRP i MSRP stands for Manufacturer's Suggested Retail Price, the price the manufacturer recommends selling this product at.

At a glance

Brand
Häfele
Material
Cup: Steel, Hinge arm: Zinc alloy

Door overlay mm
-4 -3 -2 -1 0
3 4 0
3 4 5 6 2
3 4 5 6 7 3

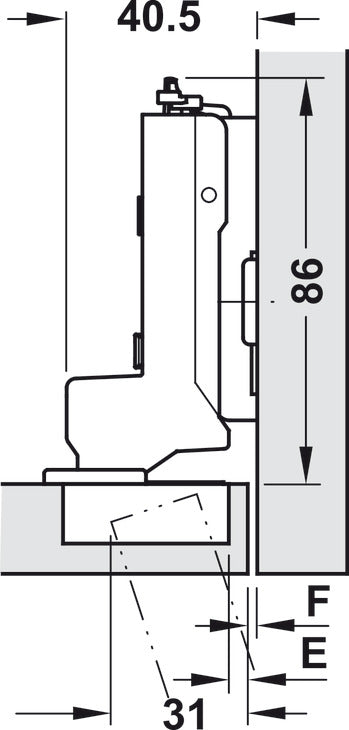

The dimensions in the drawings are calculated with a mounting plate, distance 2 mm.

Specifications

Area of application for standard applications
Concealed hinge version inset
Crank type High Cranked
For door material wood
Door processing for assembly with cup drilling
Material Cup: Steel, Hinge arm: Zinc alloy
Color/finish nickel plated
Opening angle 110°
Cup drilling depth 12.60 mm
Cup drilling Ø 35 mm
Adjustment facility Side adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2/+3 mm, Height adjustment depending on mounting plate
Installation Door on cabinet without tools with clip system
Installation reference Set back mounting plate screw-on position by door thickness +1.5 mm.
Order reference Please order Grass Tipmatic separately for hinges with opening mechanism.
Model No. F028138526228
Drilling pattern 45/9.5
