Häfele  |  SKU: 348.32.611

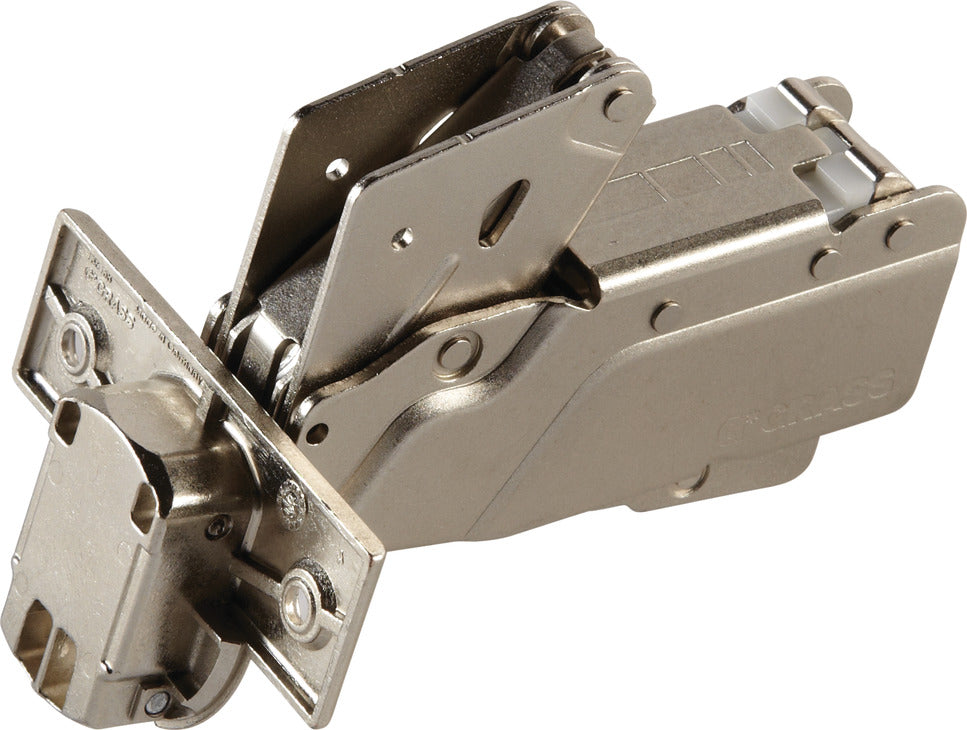

Häfele 348.32.611 Grass - Concealed Hinge, Tiomos, 155°, full overlay mounting, for cabinets with internal drawer boxes with railing or pull-out shelves, Self-close, press-fit, model F045138503217

Sale price $1028 Regular price $1708
MSRP i MSRP stands for Manufacturer's Suggested Retail Price, the price the manufacturer recommends selling this product at.

At a glance

Brand
Häfele
Material
Cup: Zinc alloy, Hinge arm: Steel

Door overlay mm
12 13 14 15 16 17 18 19 20 21 22
3 4 5 6 7 8 -2
3 4 5 6 7 8 0
3 4 5 6 7 8 2
3 4 5 6 7 8 3

The dimensions in the drawings are calculated with a mounting plate, distance 2 mm.

No minimum gap is required up to door thickness 28 mm. Trial mounting recommended from a door thickness of 29 mm and above.

Specifications

Area of application for cabinets with internal pull outs or extending trays
Concealed hinge version full overlay
Crank type Straight
For door material wood

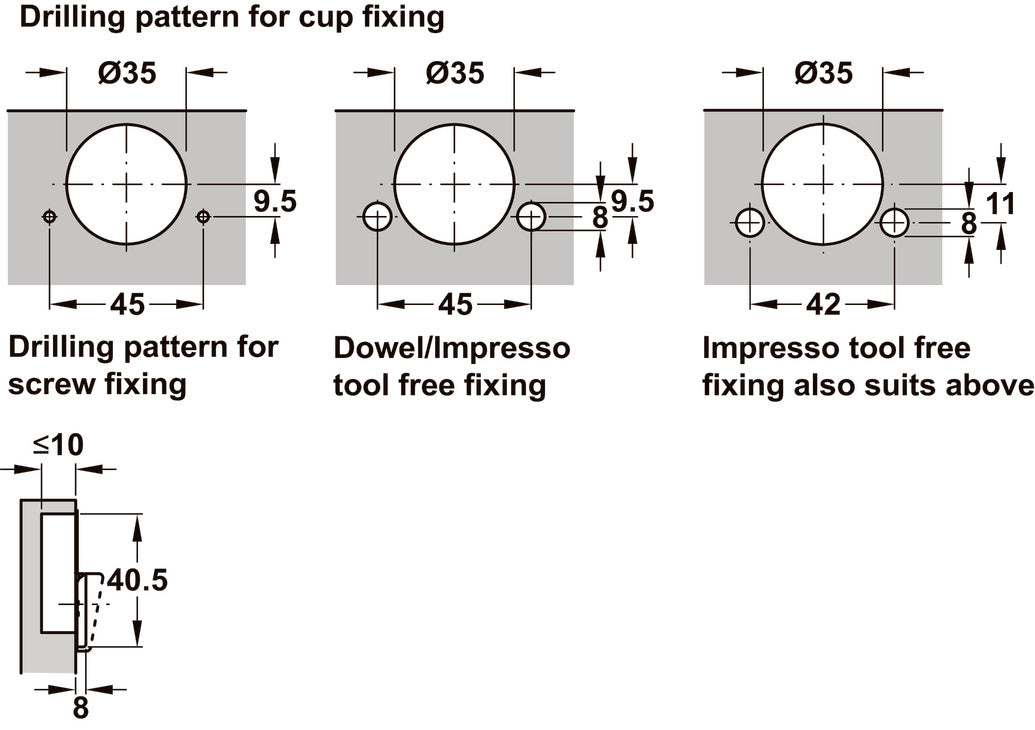

Door processing for assembly with cup drilling
Material Cup: Zinc alloy, Hinge arm: Steel
Color/finish nickel plated
Opening angle 155°
Cup drilling depth 10 mm
Drilling depth Shallow cup: 3/8"
Cup drilling Ø 35 mm
Adjustment facility Side adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2/+3 mm, Height adjustment depending on mounting plate
Installation Door on cabinet without tools with clip system
Installation reference Minimum gap FNo minimum gap is required up to door thickness 28 mm. Trial mounting recommended from a door thickness of 29 mm and above.
Model No. F045138503217
Häfele
Brand
Häfele Est. 1923
German-engineered hardware since 1923
Headquartered in Nagold, GermanySee on the brand atlas →
