Häfele  |  SKU: 348.32.812

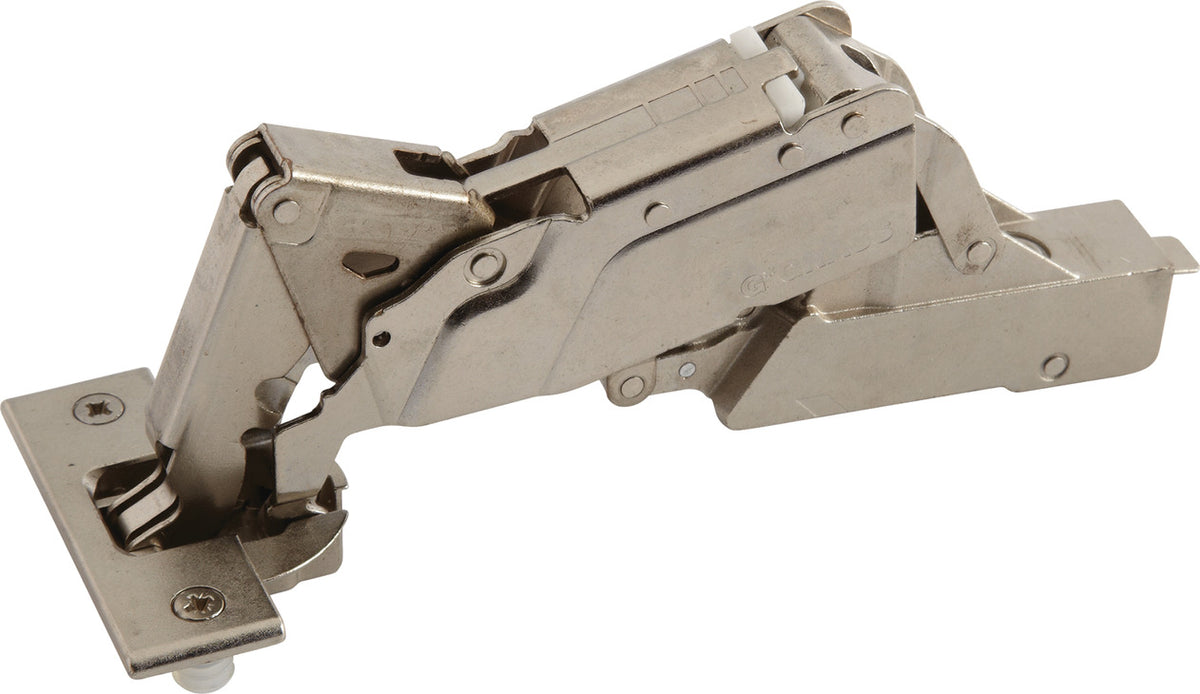

Häfele 348.32.812 Grass - Concealed Hinge, Tiomos, 155° Opening Angle, Half Overlay, for cabinets with internal drawer boxes with railing or pull-out shelves, Soft-close, press-fit, model F028138566217

Sale price $2011 Regular price $3343
MSRP i MSRP stands for Manufacturer's Suggested Retail Price, the price the manufacturer recommends selling this product at.

At a glance

Brand
Häfele
Material
Cup: Zinc alloy, Hinge arm: Steel

Door overlay mm
5.5 6.5 7.5 8.5 9.5 10.5 11.5 12.5 13.5 14.5 15.5
3 4 5 6 7 8 -2
3 4 5 6 7 8 0
3 4 5 6 7 8 2
3 4 5 6 7 8 3

The dimensions specified in the drawings are calculated with a mounting plate distance 2 mm.

No minimum gap is required up to door thickness 28 mm. Trial mounting recommended from a door thickness of 29 mm and above.

Specifications

Area of application for cabinets with internal pull outs or extending trays
Concealed hinge version Half overlay mounting/twin mounting
Crank type Cranked
For door material wood
Door processing for assembly with cup drilling
Material Cup: Zinc alloy, Hinge arm: Steel
Color/finish nickel plated
Opening angle 155°
Cup drilling depth 10 mm
Drilling depth Shallow cup: 3/8"
Cup drilling Ø 35 mm
Adjustment facility Side adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2/+3 mm, Height adjustment depending on mounting plate
Installation Door on cabinet without tools with clip system
Installation reference
Model No. F028138566217
Drilling pattern 45/9.5
