Häfele  |  SKU: 402.33.003

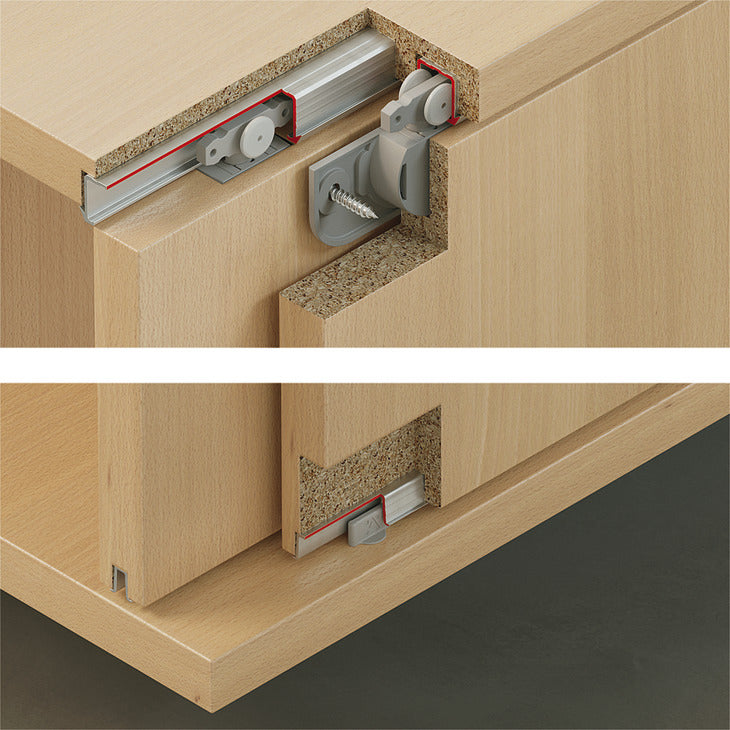

Häfele 402.33.003 Sliding Door Hardware, Slido F-Line21 12C, set, For small wooden sliding doors, for door weights up to 12 kg (26.4 lbs), for 2 doors, with dual soft closing on each door

Regular price $10256

Mounts quickly and easily
Space saving compared to hinged doors
Soft closing feature prevents door slam and helps eliminate noise

Specifications

Number of doors 2
Soft closing mechanism with soft and self closing mechanism on both sides
For door thickness 16 – 19 mm
For door width ≥530 mm
For door weight ≤12 kg
Number of rollers 2
Height adjustment ±1.5 mm
Running gear guided by Friction bearing
For door material wood
For door thickness max. 3/4"
Door width max. Max. 3' 3 3/8"
For door thickness min. 5/8"
Door weight max. 22 lbs
Height adjustable Yes
Max. door weight 26 lb
Cabinet version with small door wings
Area of application with small door wings
Door stopper Top clip-in door stopper or soft and self closing mechanism, for sliding into running track
Material/finish Housing: Plastic, Running gear: Plastic, Guide: Plastic, Rollers: Plastic, Axis: Steel
Running position Top
Adjustment facility Height adjustment ±1.5 mm, ±1.5 mm on running gear using adjusting wheel
Door adjustment via adjusting wheel

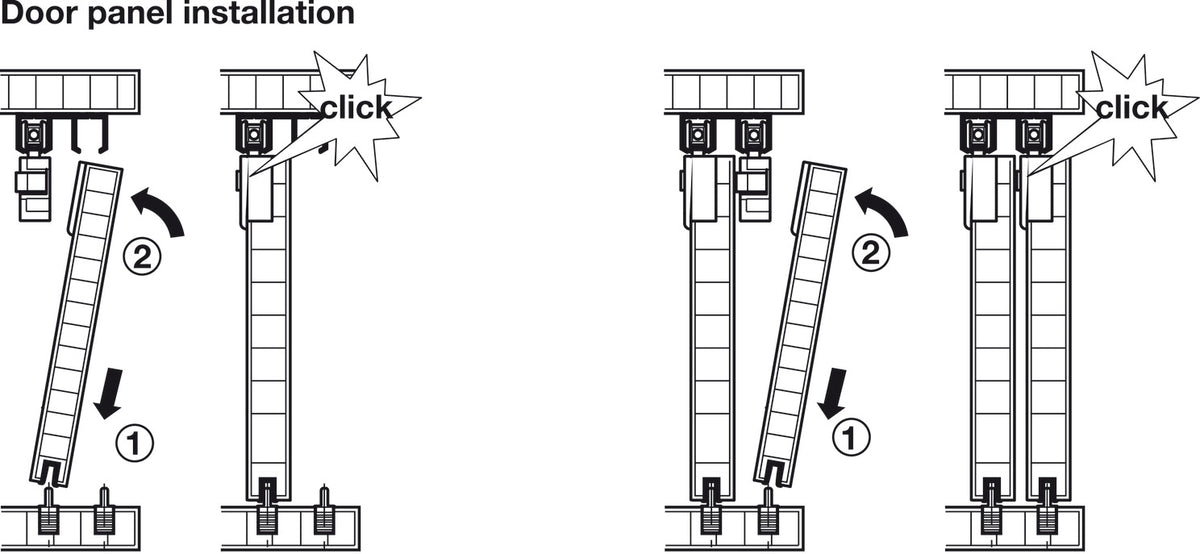

Installation Screw-on housing, Running gear without tools (quick fixing system), Guide for press fitting into a drill hole
Set Set without tracks
Supplied with 4 housing2 screw mounted running gears2 clip mounted running gears4 door stoppers2 guides1 door stop1 mounting aid
