Häfele  |  SKU: 402.33.029

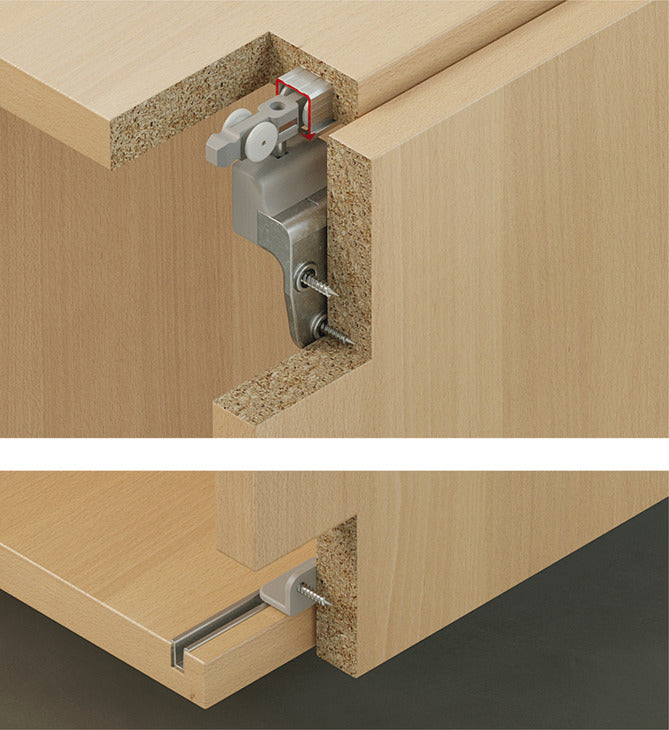

Häfele 402.33.029 Sliding Door Hardware, Slido F-Line21 20A, set, For cabinets with 1 wooden door, for door weights up to 20 kg (44 lbs.), for door heights up to 1,400 mm (55"), For 1 Door, with track stopper

Sale price $5003 Regular price $6930
MSRP i MSRP stands for Manufacturer's Suggested Retail Price, the price the manufacturer recommends selling this product at.

Specifications

Number of doors 1
For door thickness 16 – 19 mm
For door weight ≤20 kg
Number of rollers 4
Version With top clip-in door stopper or soft and self closing mechanism, for sliding into running track
Running gear guided by Friction bearing
For door material wood
For door thickness max. 3/4"
Door width max. Max: 4' 1 3/16"
For cabinet width 4' 1 3/16" - 6' 13/16"
For door thickness min. 5/8"
Door weight max. 44 lbs.
Height adjustable Yes
Length (inch) 2' 1 19/32"
Max. door weight 44 lb
Area of application For cabinets with 1 wooden sliding door
For door height ≤1,400 mm
Door stopper Top clip-in door stopper or soft and self closing mechanism, for sliding into running track
Material/finish Running gear: Plastic, Guide: Plastic, Mounting plate: Zinc alloy, Rollers: Plastic, Axis: Steel
Running position Top
Adjustment facility Height ±2 mm on running gear using adjusting wheel
Door adjustment via adjusting wheel

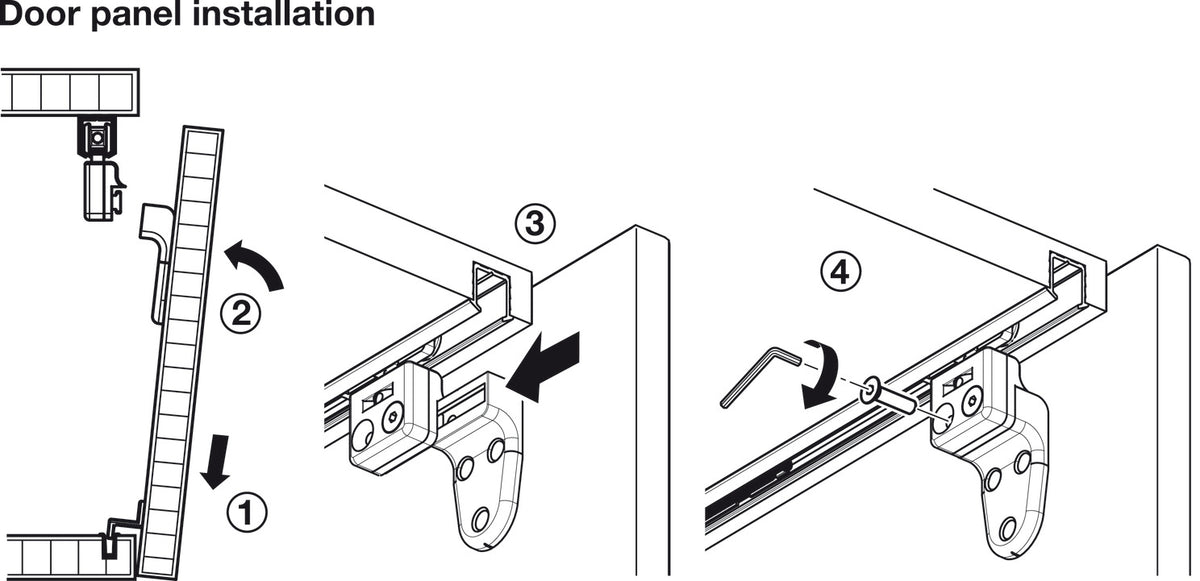

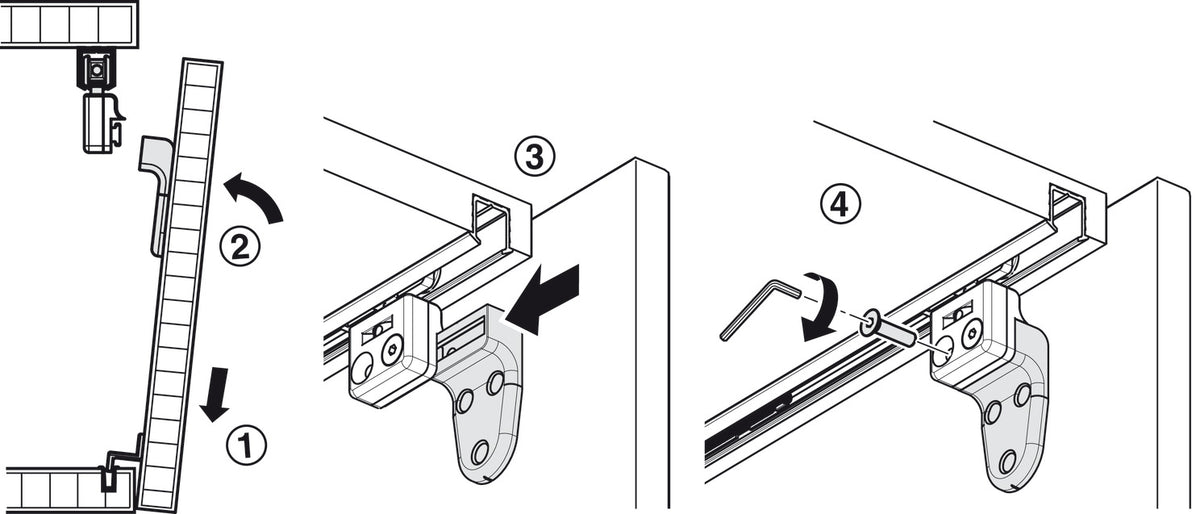

Installation Mounting plate for screw fixing, Running gear for slide-in and screw fixing, Guide for screwing to door wing

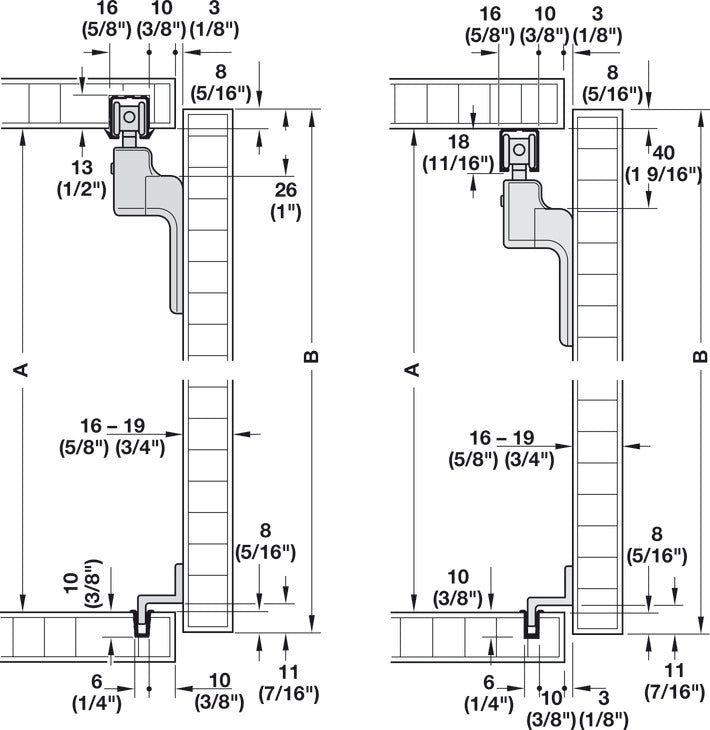

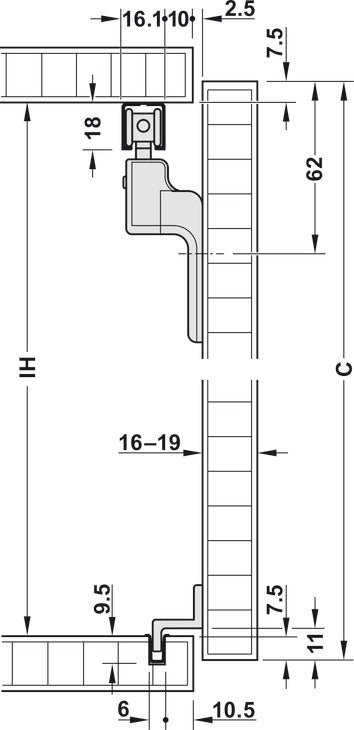

Installation reference The dimensions 48/70 are increased by 14 mm when mounting tracks for screw fixing.Dimensions that are measured from the outer edge of the door must be adapted accordingly where doors overlap the side panel.
Order reference Please order running and guide tracks separately.
For door width ≤1,250 mm
Soft closing mechanism without soft and self closing mechanism, with clip-in door stopper
