Häfele  |  SKU: 924.16.803

Häfele 924.16.803 TECTUS - Concealed Hinge, TE 526 3D, for flush doors up to 100 kg, 3D adjustable, size 155 mm, satin

Sale price $59403 Regular price $82276
MSRP i MSRP stands for Manufacturer's Suggested Retail Price, the price the manufacturer recommends selling this product at.

At a glance

Brand
Häfele
Material
Stainless steel

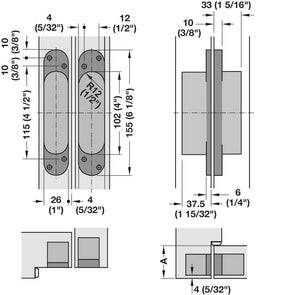

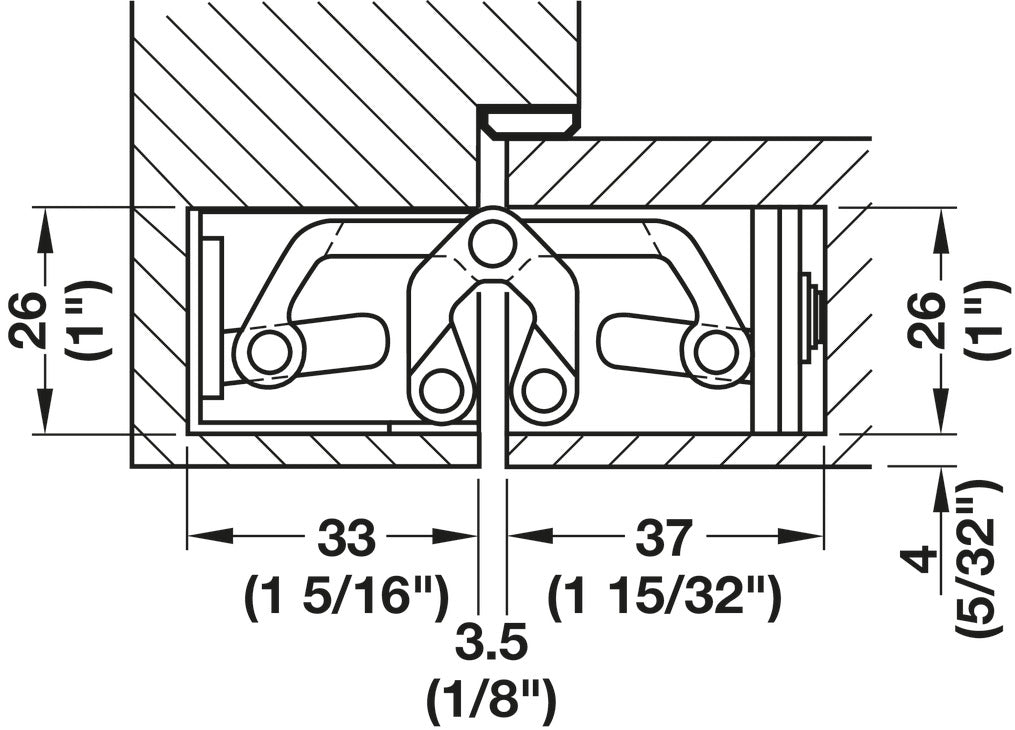

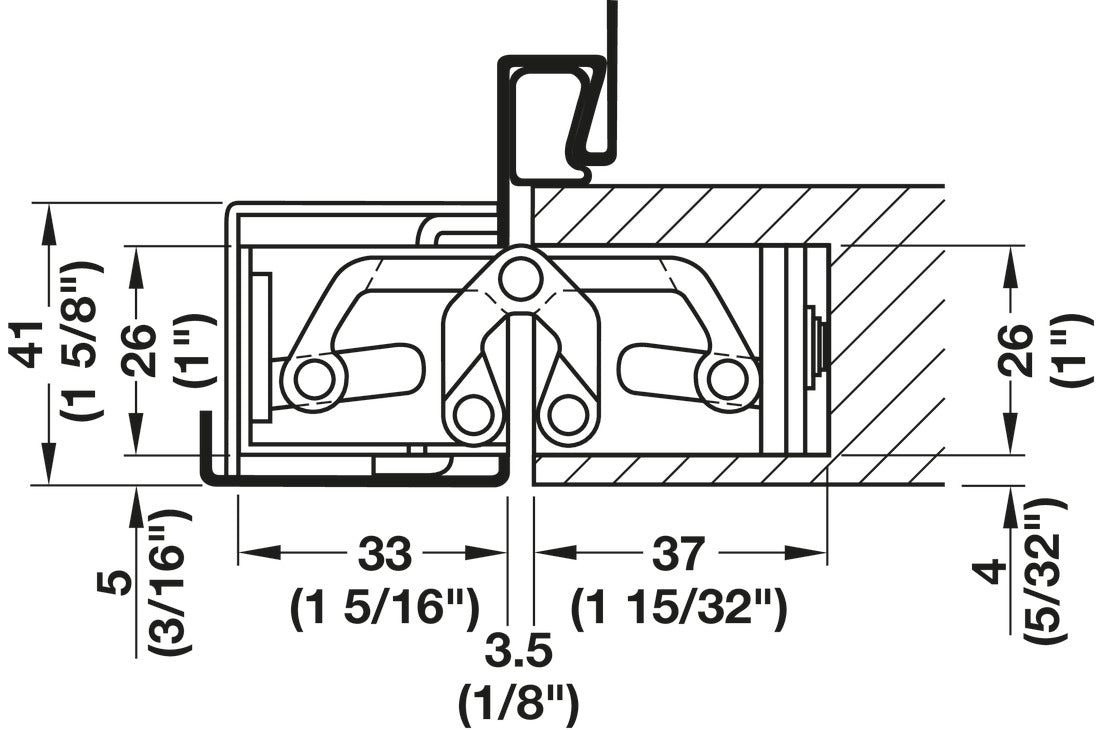

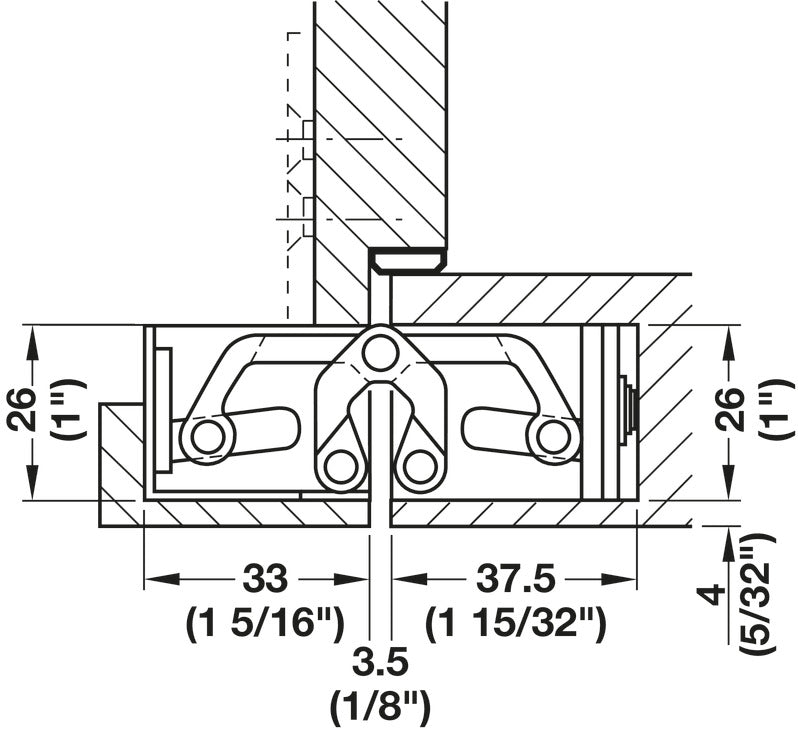

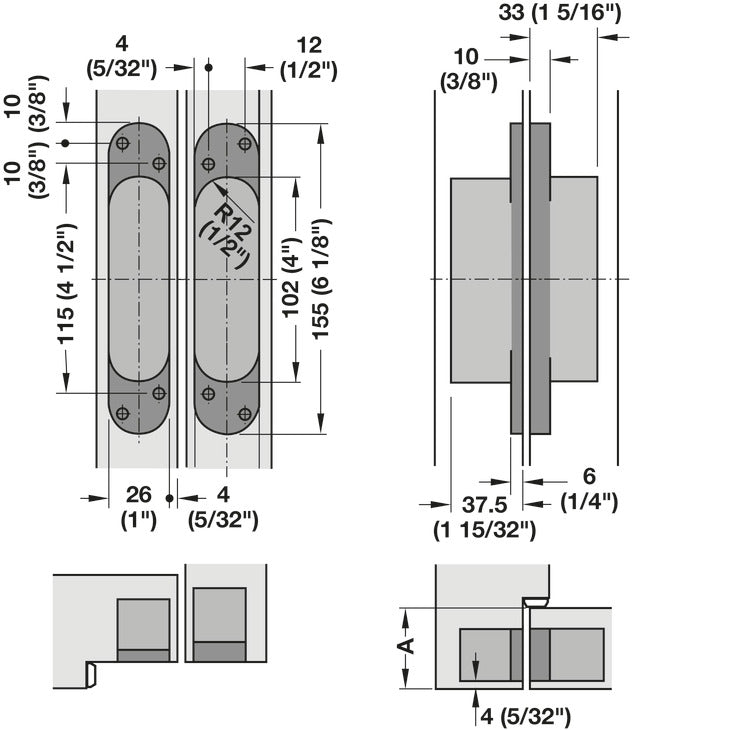

Specifications

Mounting For DIN left and DIN right hand use
Flange shape rounded
Flange width 26 mm
Color/finish satin-finish
Material Stainless steel
Model TE 526 3D
Flange height 155 mm
Door weight max. 264 lbs
For door thickness min. 1 3/8"
Model series TECTUS
Area of application For wooden, steel or aluminum frames, for flush doors
For frame type Wooden frame, Steel frame, Aluminium frame
Max. door weight for 2 hinges 120 kg
Opening angle 180 °
Door thickness ≥35 mm
Router bit Ø 24 mm
Thrust ring Ø 25 mm
Bearing type Friction bearing, maintenance-free
Adjustment facility Side adjustment ±3 mm, Height adjustment ±3 mm, Closing pressure adjustment facility ±1 mm
Standard Certified in compliance with EN 1935:2002
Grade 4|7|6|1|1|4|1|13
