Häfele  |  SKU: 924.17.169

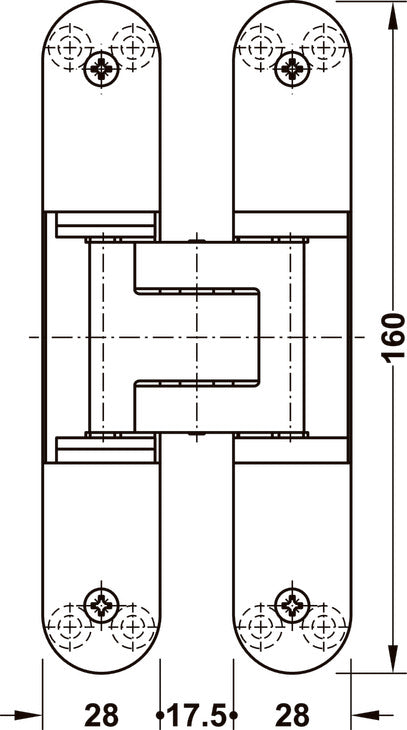

Häfele 924.17.169 TECTUS - Concealed Hinge, TE 340 3D, 3D adjustable, size 160 mm, Polished brass

Sale price $31138 Regular price $43128
MSRP i MSRP stands for Manufacturer's Suggested Retail Price, the price the manufacturer recommends selling this product at.

At a glance

Brand
Häfele
Material
Steel, Aluminum, Zinc alloy

Maintenance-free slide bearings
UL = 60 minutes

“Energy” version also available (optional). Permanent energy transmission from the frame into the door leaf is therefore possible without additional cable transition.

Specifications

Mounting DIN left/right
Material Steel, Aluminum, Zinc alloy
Door weight max. 176 lbs
Door thickness min. 1 1/2"
Model series TE 340 3D
Area of application Used in door frames made out of hollow metal or wood for flush doors
For door type metal door, Wooden door leaf
For frame type For wooden frame, Metal frame, Aluminium frame
Max. door weight for 2 hinges 80 kg
Opening angle 180 °
Door thickness ≥38 mm
Router bit Ø 15/16”; Guide: 1 3/16"
Bearing type Friction bearing, maintenance-free
Adjustment facility Side adjustment ±3 mm, Height adjustment ±3 mm, Closing pressure adjustment facility ±1 mm
Standard Certified in compliance with EN 1935:2002
Grade 3|7|4|1|1|4|0|11
Color/finish polished, Powder coatedbrass plated
