Häfele  |  SKU: 924.17.524

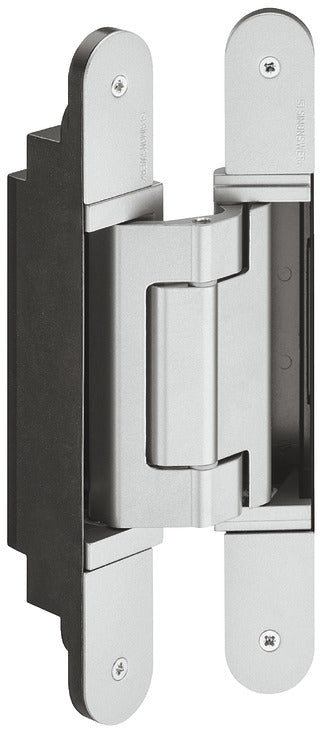

Häfele 924.17.524 TECTUS - Concealed Hinge, TE 640 3D A8, concealed, 3D adjustable, size 240 mm, Satin nickel look

Sale price $39765 Regular price $55076
MSRP i MSRP stands for Manufacturer's Suggested Retail Price, the price the manufacturer recommends selling this product at.

At a glance

Brand
Häfele
Material
Steel, Aluminum, Zinc alloy

Specifications

Mounting For DIN left and DIN right hand use
Version Maintenance-free slide bearings
Flange shape rounded
Flange width 32 mm
Material Steel, Aluminum, Zinc alloy
Model TE 640 3D A8
Flange height 240 mm
Door weight max. 352 lbs
Door thickness min. 1 9/16"
Model series TECTUS TE 640 3D A8

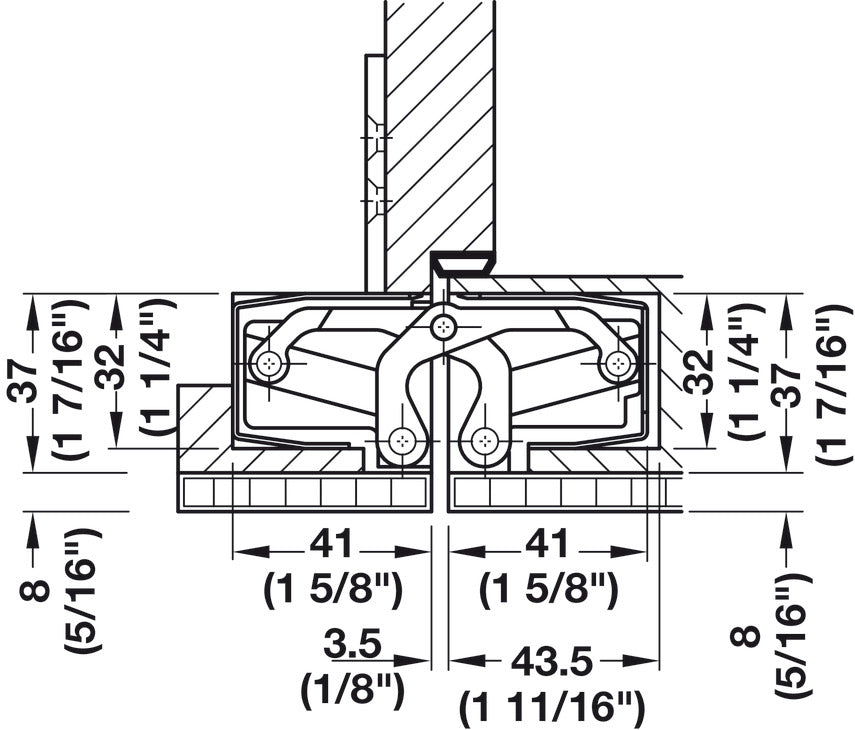

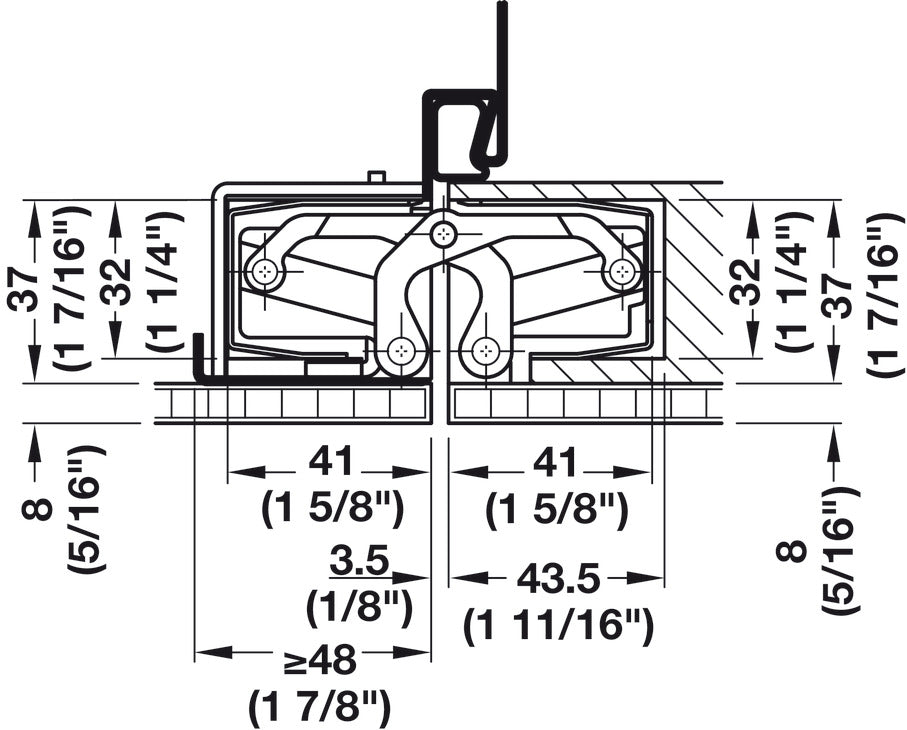

Area of application Used in door frames made out of hollow metal or wood for flush doors with an additional up to 8 mm (5/16”) thick surface applied panel; Maximum door size: 4 x 8 for a single door, 8 x 8 for a pair of doors
For frame type Wooden frame, Steel frame, Aluminium frame
Max. door weight for 2 hinges 160 kg
Opening angle 180 °
Door thickness ≥40 mm
Router bit Ø Bit: 15/16"#Guide: 1 3/16"
Thrust ring Ø 30 mm
Adjustment facility Side adjustment ±3 mm, Height adjustment ±3 mm, Closing pressure adjustment facility ±1 mm
Standard Certified in compliance with EN 1935:2002
Grade 4|7|7|1|1|4|1|14
Color/finish New silver colored, Powder coated
