Häfele  |  SKU: 924.19.285

Häfele 924.19.285 TECTUS - Concealed Hinge, TE 540 3D, 3D adjustable, size 200 mm, Satin brass

Sale price $51620 Regular price $71496
MSRP i MSRP stands for Manufacturer's Suggested Retail Price, the price the manufacturer recommends selling this product at.

Maintenance-free slide bearings

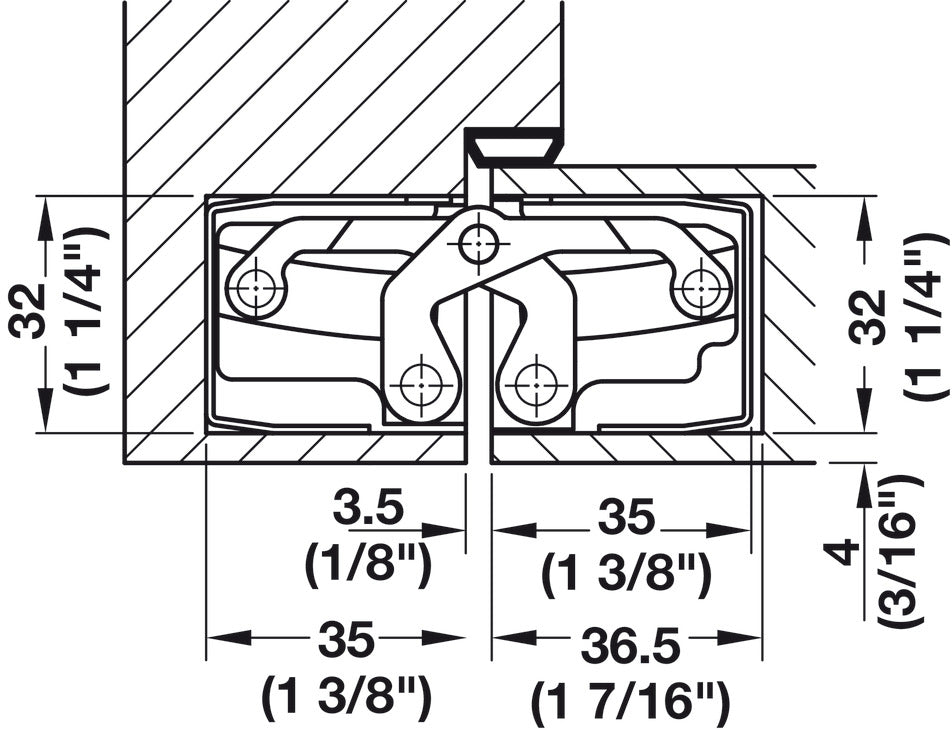

Specifications

Mounting For DIN left and DIN right hand use
Flange shape rounded
Flange width 32 mm
Flange height 200 mm
Door weight max. 264 lbs
For door thickness min. 1 9/16”
Model series TE 540 3D
Area of application Used in door frames made out of hollow metal or wood for flush doors Maximum door size: 4 x 8 for a single door, 8 x 8 for a pair of doors
For frame type Steel frame, Aluminium frame, Wooden/lining frame
Max. door weight for 2 hinges 120 kg
Opening angle 180 °
Door thickness ≥40 mm
Router bit Ø 15/16”; Guide: 1 3/16"
Thrust ring Ø 30 mm
Adjustment facility Side adjustment ±3 mm, Height adjustment ±3 mm, Closing pressure adjustment facility ±1 mm
Standard Certified in compliance with EN 1935:2002
Grade 4|7|6|1|1|4|1|13
Color/finish Brass colored, satin-finish, Powder coated
Model 047
