Häfele  |  SKU: 924.19.380

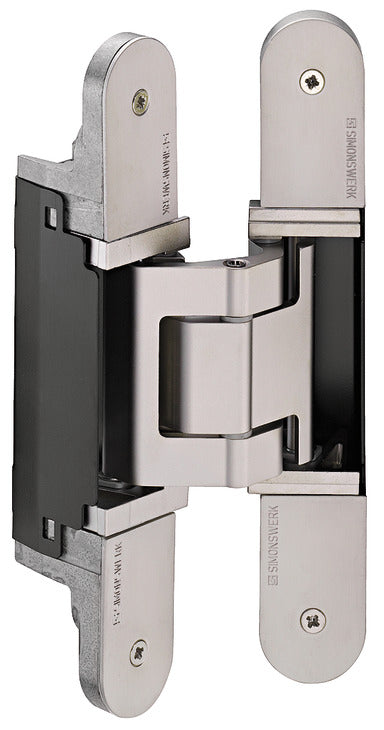

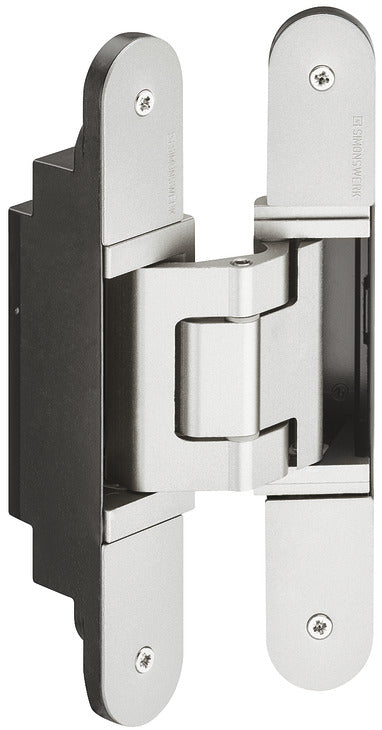

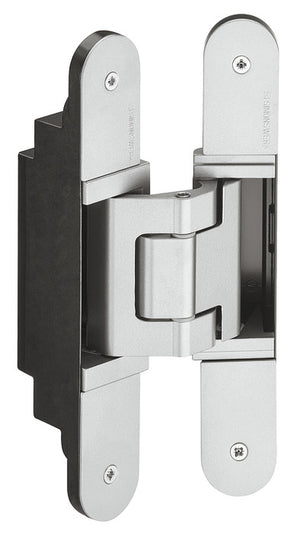

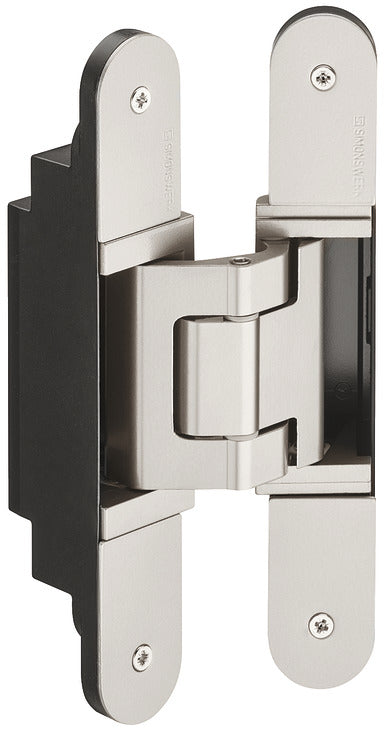

Häfele 924.19.380 TECTUS - Concealed Hinge, TE 540 3D A8, 3D adjustable, size 200 mm, Polished brass-plated

Sale price $54014 Regular price $74812
MSRP i MSRP stands for Manufacturer's Suggested Retail Price, the price the manufacturer recommends selling this product at.

At a glance

Brand
Häfele
Material
Steel, Aluminum, Zinc alloy

Specifications

Mounting For DIN left and DIN right hand use
Version Maintenance-free slide bearings
Flange shape rounded
Flange width 32 mm
Material Steel, Aluminum, Zinc alloy
Model TE 540 3D A8
Flange height 200 mm
Door weight max. 220 lbs
Door thickness min. 1 9/16"
Model series TECTUS TE 540 3D A8
Area of application Used in door frames made out of hollow metal or wood for flush doors with an additional up to 8 mm (5/16”) thick surface applied panelUL listed for 20 minute rated fire doors (maximum door size: 4' x 8' for a single door, 8' x 8' for a pair of doors); Left and right applications
For frame type Wooden frame, Steel frame, Aluminium frame
Max. door weight for 2 hinges 100 kg
Opening angle 180 °
Door thickness ≥40 mm
Router bit Ø Bit: 15/16"#Guide: 1 3/16"
Thrust ring Ø 30 mm
Adjustment facility Side adjustment ±3 mm, Height adjustment ±3 mm, Closing pressure adjustment facility ±1 mm
Standard Certified in compliance with EN 1935:2002
Grade 4|7|5|1|1|4|1|12
Color/finish Brass colored, polished, Powder coated
