Häfele  |  SKU: 940.42.076

Häfele 940.42.076 Sliding Door Hardware, Slido D-Line11 50C/80C/120C, set without running track, for 1-leaf and 4-leaf wooden and sliding frame doors, ceiling installation and wall mounting, door height adjustable, without soft and self closing mechanism,

Sale price $10498 Regular price $14540
MSRP i MSRP stands for Manufacturer's Suggested Retail Price, the price the manufacturer recommends selling this product at.

Soft and self closing mechanism:
low opening force – easy and convenient operation
tested with increased closing speed up to 0.5 m/s
Can be retrofitted or replaced at any time
Accessibility: Opening force with door weight 50 kg: 20 N / 80 kg: 23 N
Shock absorber:
Closing speed with shock absorber tested up to 0.4 m/s

Please note when using shock absorber with retaining spring: The door may not close completely if the closing speed is too low, if it is too high, the door may bounce back slightly.
If required, the sets can be retrofitted without or with soft and self closing mechanism on one side, with soft and self closing mechanism or shock absorber.

Information for calculating the panel dimensions can be found in the installation instructions.

Specifications

Number of doors per system max. 1 to 4
Number of doors 1
Model 50C / 80C / 120C

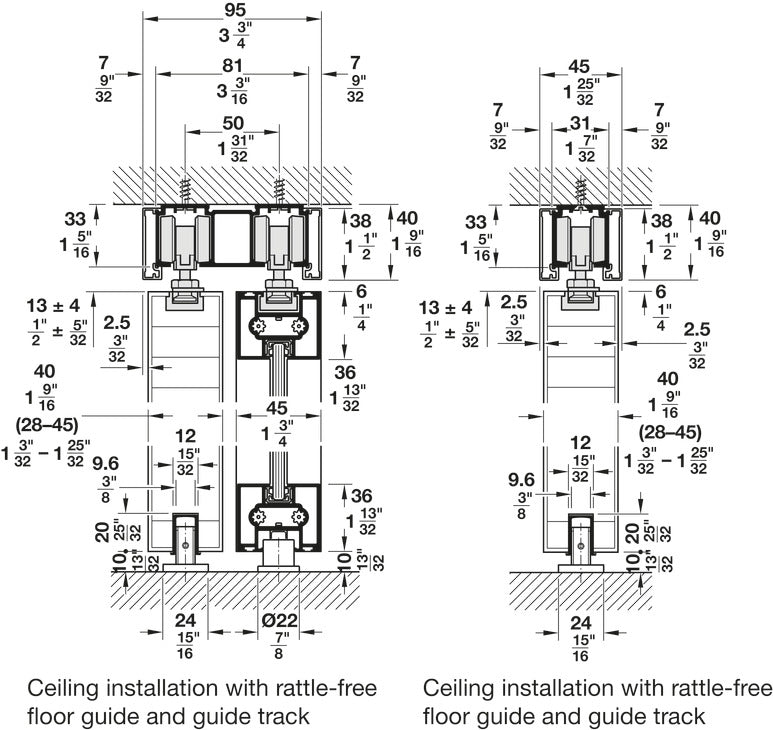

Controller installation options Ceiling installation, Wall mounting
For glass thickness with tempered safety glass 5 mm, 6 mm, 8 mm
For glass thickness with laminated glass 6-8.7 mm
For door thickness 28 – 45 mm
Adjustment facility Height adjustment ±3 mm, Height: (1/8") +/-3
Area of application For wooden and frame doorsfor 1-leaf to 4-leaf sliding doors
Note on door width 1,500 mm for frame doors
Note on door height 3,000 mm for frame doors
Running position Top
Installation Suspension with integrated flange clip (without tools)
Door processing With recess
For door width ≥500 mm
For door weight ≤50 kg
Max. door weight 110 lb
For door material wood, frame doors
Running gear version Running gear with axle bearing
Soft closing mechanism without soft and self closing mechanism, with track buffers on both sides
