Häfele  |  SKU: 941.02.036

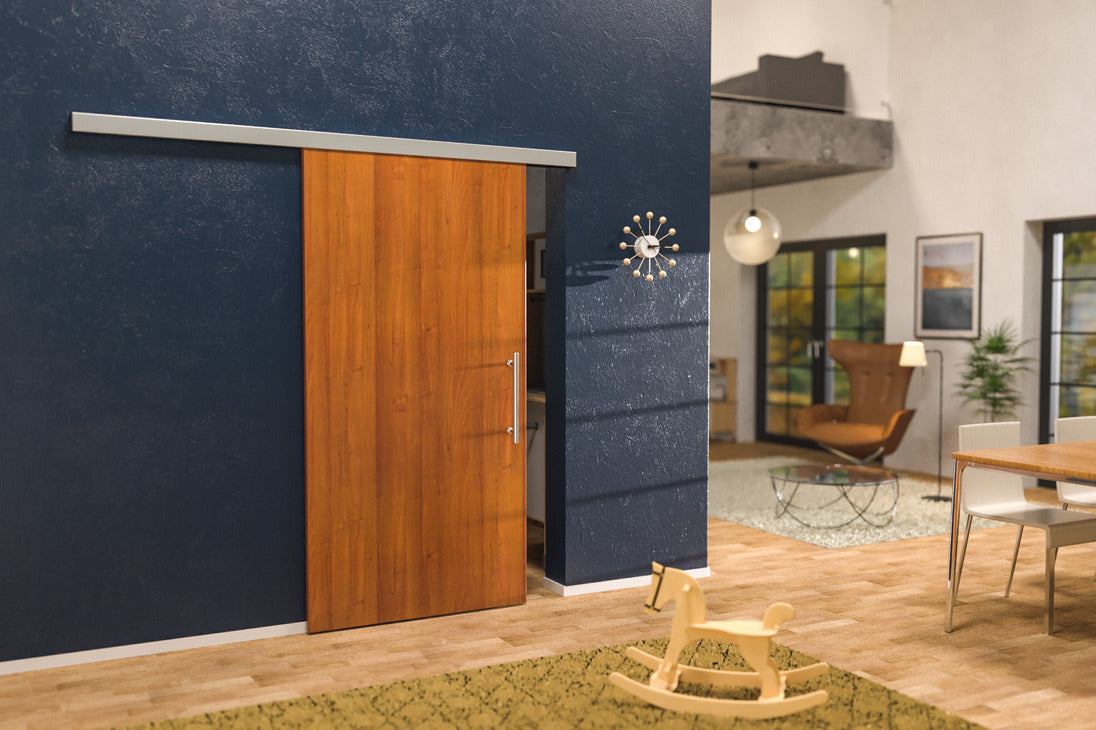

Häfele 941.02.036 Sliding Door Hardware, Slido D-Line11 50P/80P/120P, set without running track, for 1-leaf and 2-leaf wooden sliding doors, ceiling installation and wall mounting, door height adjustable, Without soft and self closing mechanism, door widt

Sale price $7489 Regular price $10372
MSRP i MSRP stands for Manufacturer's Suggested Retail Price, the price the manufacturer recommends selling this product at.

Soft and self closing mechanism:
Low opening force – easy and convenient operation
Tested with increased closing speed up to 0.5 m/s
Can be retrofitted or replaced at any time
Accessibility: Opening force with door weight 50 kg: 20 N / 80 kg: 23 N
Shock absorber:
Closing speed with shock absorber tested up to 0.4 m/s

No end cap is available for ceiling installation with fascia on both sides. A pair of end caps can be attached end to end and glued vertically in the centre of the running track (optional).
Please note when using shock absorber with retaining spring: The door may not close completely if the closing speed is too low, if it is too high, the door may bounce back slightly.
For sets without or with soft and self closing mechanism on one side: If required, soft and self closing mechanism or shock absorber can be retrofitted.

End cap for ceiling installation with fascia on both sides not available. One pair of end caps can be glue fixed vertically in the centre of the running track (optional).

Specifications

Number of doors 1
For door material wood
Model 50P / 80P / 120P
Controller installation options Ceiling installation, Wall mounting
Adjustment facility height adjustment
Area of application For 1-leaf and 2-leaf sliding doors
Note on door weight Per door
Running position Top
Installation Suspension with screwed on support flange
Order reference Please order track, panels and accessories separately. Order 2 sets for 2-leaf sliding doors.
Version Track buffer with retaining spring
For door width ≥500 mm
For door weight ≤120 kg
Max. door weight 264 lb
Number of doors per system max. 1 to 2
Running gear version Running gear with ball bearing mounted rollers
Soft closing mechanism without soft and self closing mechanism, with track buffer with retaining spring on both sides
