Häfele  |  SKU: 941.62.018

Häfele 941.62.018 Sliding Door Hardware, Slido D-Line11 160P, set, for 1-leaf and 2-leaf wooden sliding doors, ceiling and wall mounting, door height adjustable, for door weight up to 160 kg (353 lbs.), With soft and self closing and opening mechanism

Sale price $36520 Regular price $50582
MSRP i MSRP stands for Manufacturer's Suggested Retail Price, the price the manufacturer recommends selling this product at.

Soft and self closing mechanism:
low opening force – easy and convenient operation
tested with increased closing speed up to 0.4 m/s

No end cap is available for ceiling installation with fascia on both sides. A pair of end caps can be attached end to end and glued vertically in the centre of the running track (optional).

End cap for ceiling installation with fascia on both sides not available. One pair of end caps can be glue fixed vertically in the centre of the running track (optional).

Specifications

Number of doors per system max. 1 to 2
Number of doors 1
For door material wood
Model 160P
Version With Soft Close on one side
Running gear version Running gear with ball bearing mounted rollers
For door weight ≤160 kg

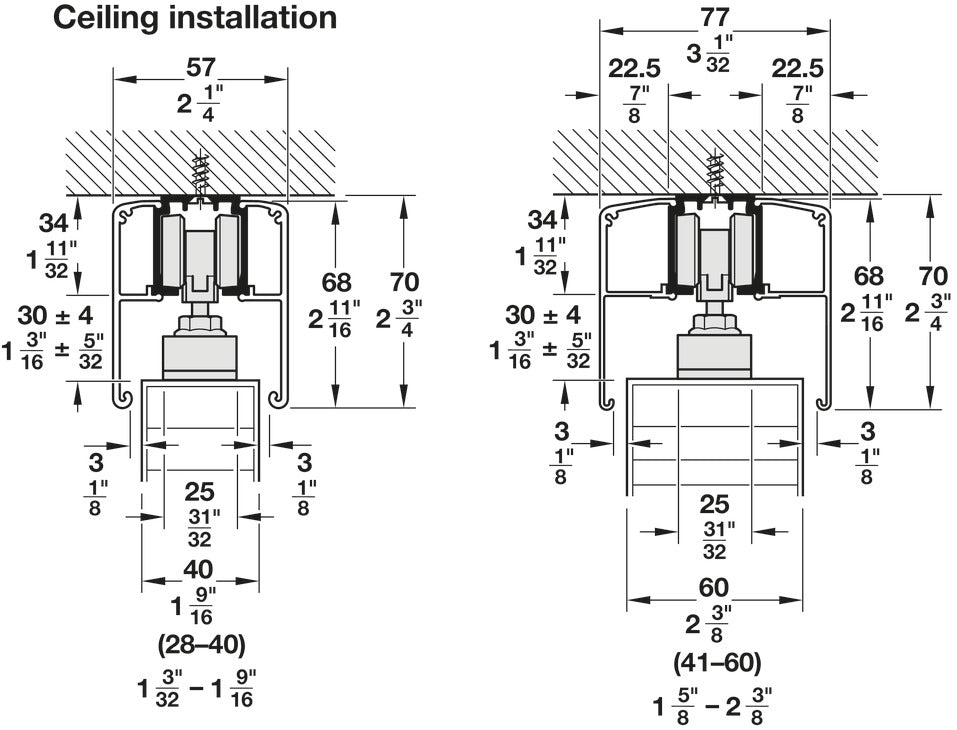

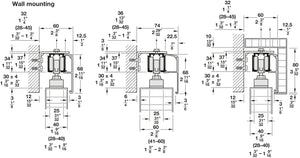

Controller installation options Ceiling installation, Wall mounting
Adjustment facility height adjustment
Max. door weight 352 lb
Area of application For 1-leaf and 2-leaf sliding doors
Note on door weight per door
Running position Top
Installation Suspension with screwed on support flange
Door processing With recess
Order reference Please order track, panels and accessories separately.
Supplied with 2 running gears with soft and self closing mechanism1 clear threshold floor guide2 release device with stopper for soft and self closing mechanism
For door width ≥868 mm
Soft closing mechanism with soft and self closing mechanism on both sides
