Amana  |  SKU: AT658040

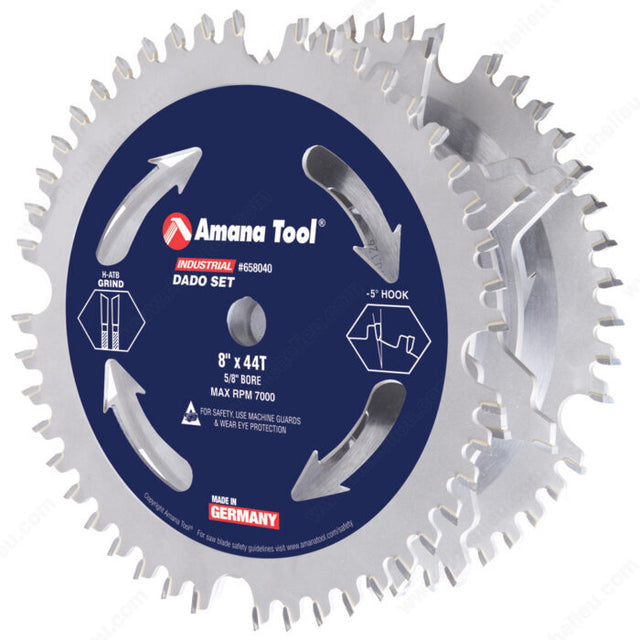

Amana AT658040 658040 Carbide Tipped Dado 8 Inch Dia x 44T H-ATB -5 Deg, 5/8 Bore, Dado Set with Five 4-Wing Chippers

Regular price $90804

Dadoes (cross-grain cuts) and grooves (cuts with the grain) are cut efficiently on the table saw with a dado stack set. Unlike a wobbler, a stack set produces a flat-bottom cut with chip-free edges. Amana Tool® makes dado stack sets for every machine and every type of woodworking material. The standard width capacity ranges from 1/4" to 13/16". Additional chippers may be purchased separately to expand the capacity beyond 13/16". The standard set, regardless of diameter or tooth count, consists of two outside saw blades and four inside chippers. The outside blades feature hollow-ground plates for proper clearance, and high alternate top bevel (H-ATB) grind.
For plywood and melamine, the sets with 44-tooth outside blades are recommended.
Teeth refers to the number of teeth for each outside saw blade.

(D) Diameter: 8 (200mm)
Teeth: 44
(d) Bore: 5/8
Tooth Grind: H-ATB
Hook Angle: -5°
Kerf (B): 1/4 - 13/16
Description: (5) 4-Wing Chippers
Blade Type Dado Blade Set
Brand Amana
